Price List
CMT4
Total Stock: 75
Factory Lead Time: TBD
RoHs Compliant

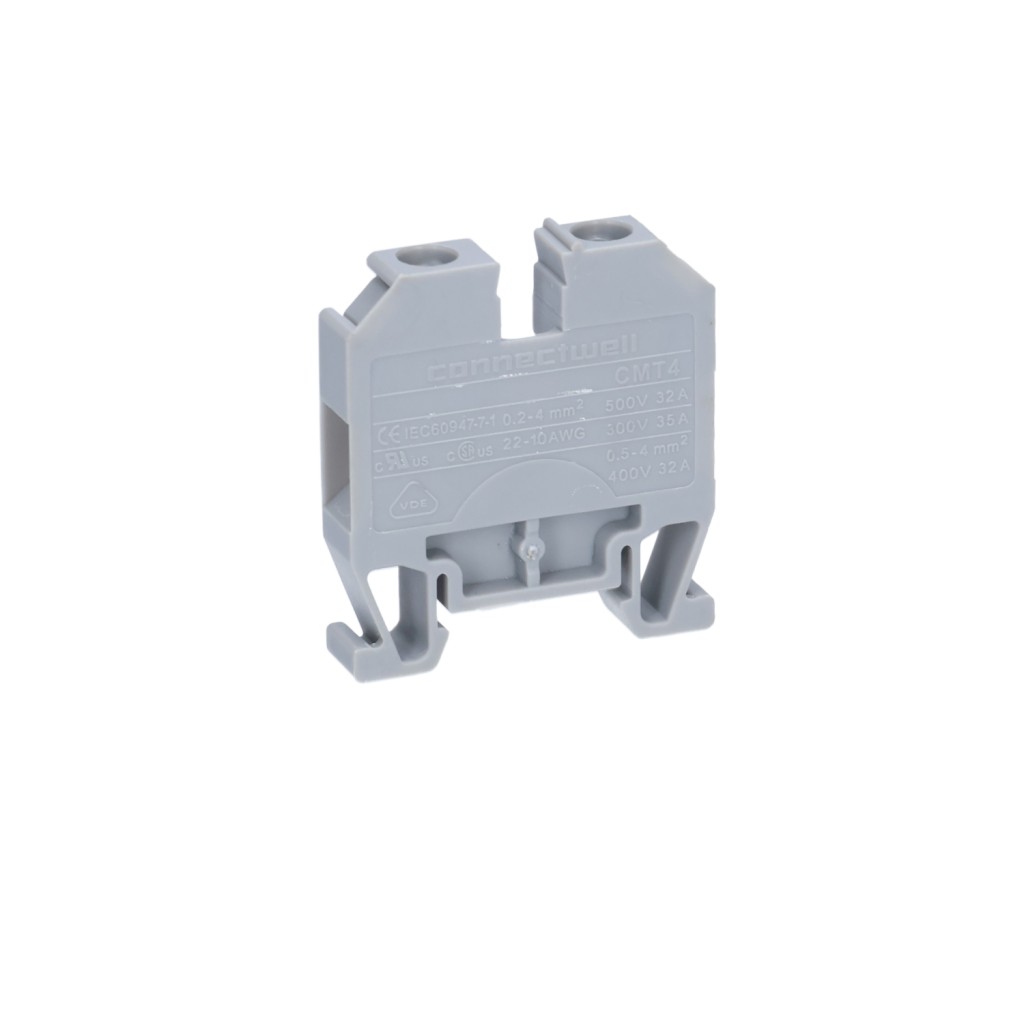

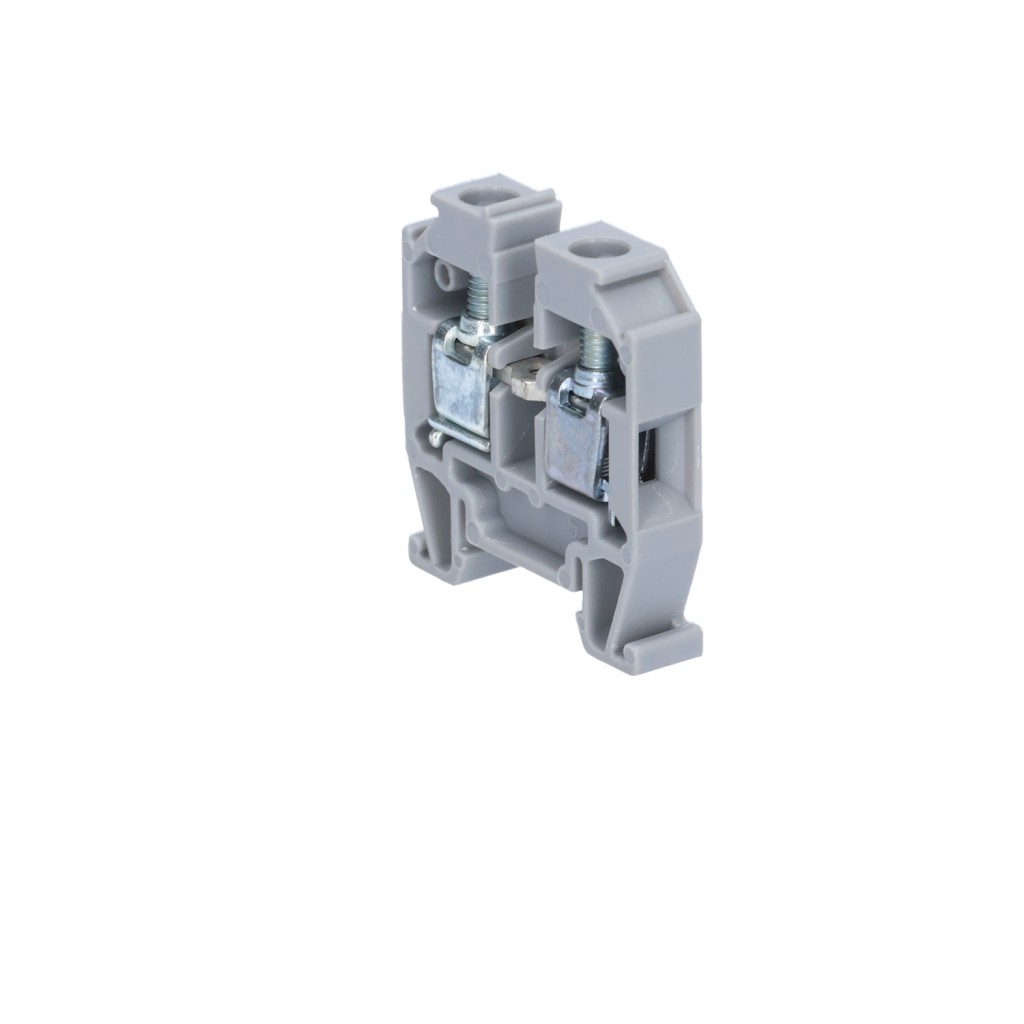

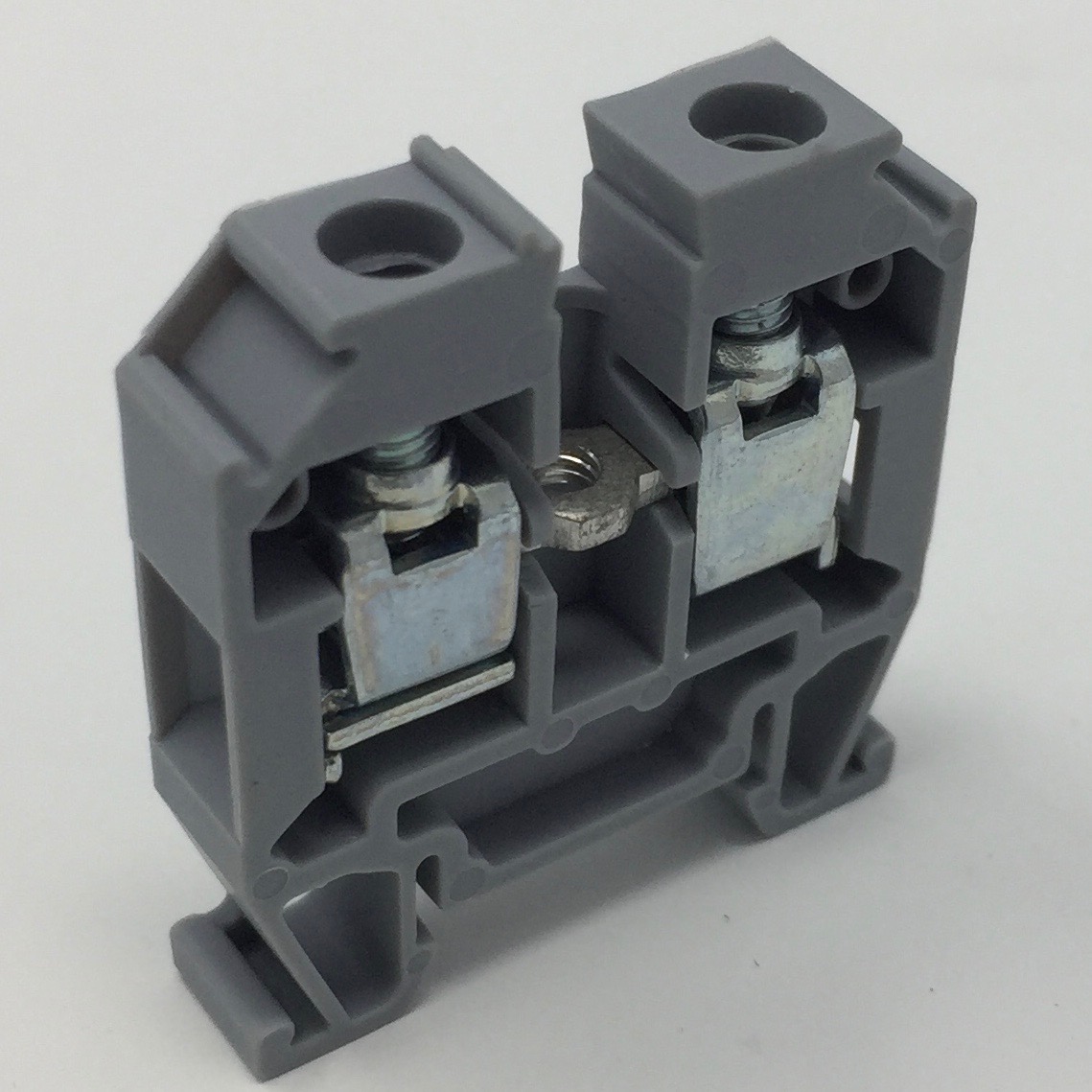

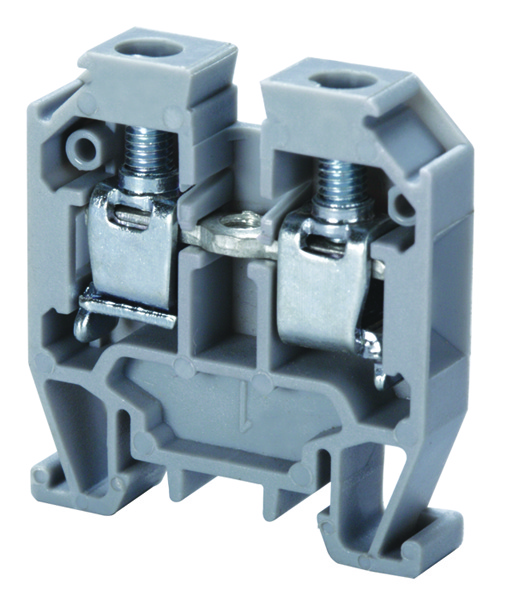

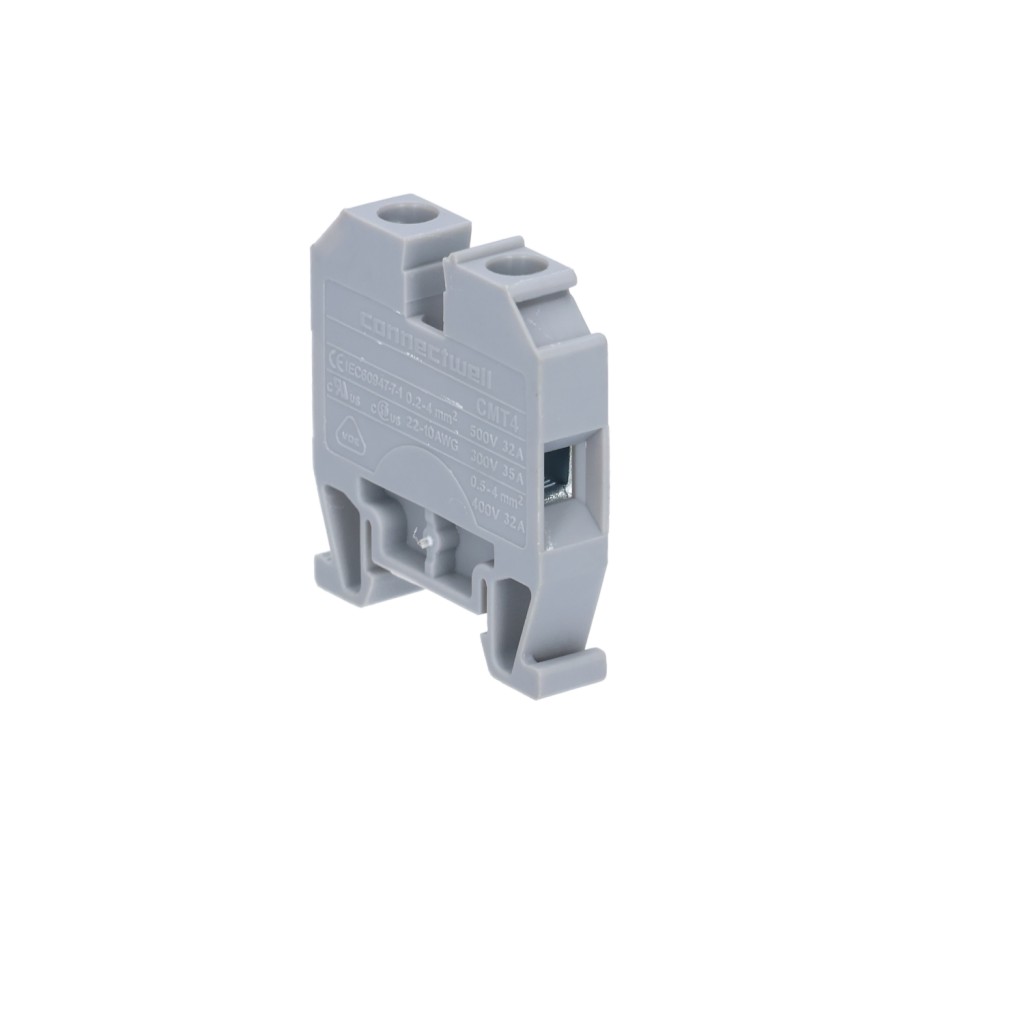

Mini Feed-Through 15 mm, 6 mm
Hawk Electronics
Total Stock: 75
Factory Lead Time: TBD
RoHs Compliant
Product Attributes
Hawk Stock
75 reported as of 02/06/24
Factory Stock
27900 reported as of 02/06/24
Approvals
CSA, IEC, UL
Voltage Rating
300 V, 500 V, 300 V
Type of Connection
2 screw clamps & 1 tapped hole for cross connect
Torque
7 lb-in, 0.5 Nm, 7 lb-in
Terminal Width
6 mm
Terminal Voltage
9 mm
Spec Sheet
PACKAGE INFO
STD Pack 100
Insulation Material
Polyamide 6.6
Height x Length
29 x 27 mm
Current Rating
35 A, 32 A, 35 A
Wire Range
22-10 AWG, 0.2-4 sq.mm, 22-10 AWG
Series Attributes
Not available at this time.
