Price List
CMDB6/4
Total Stock: 5
Factory Lead Time: TBD
RoHs Compliant

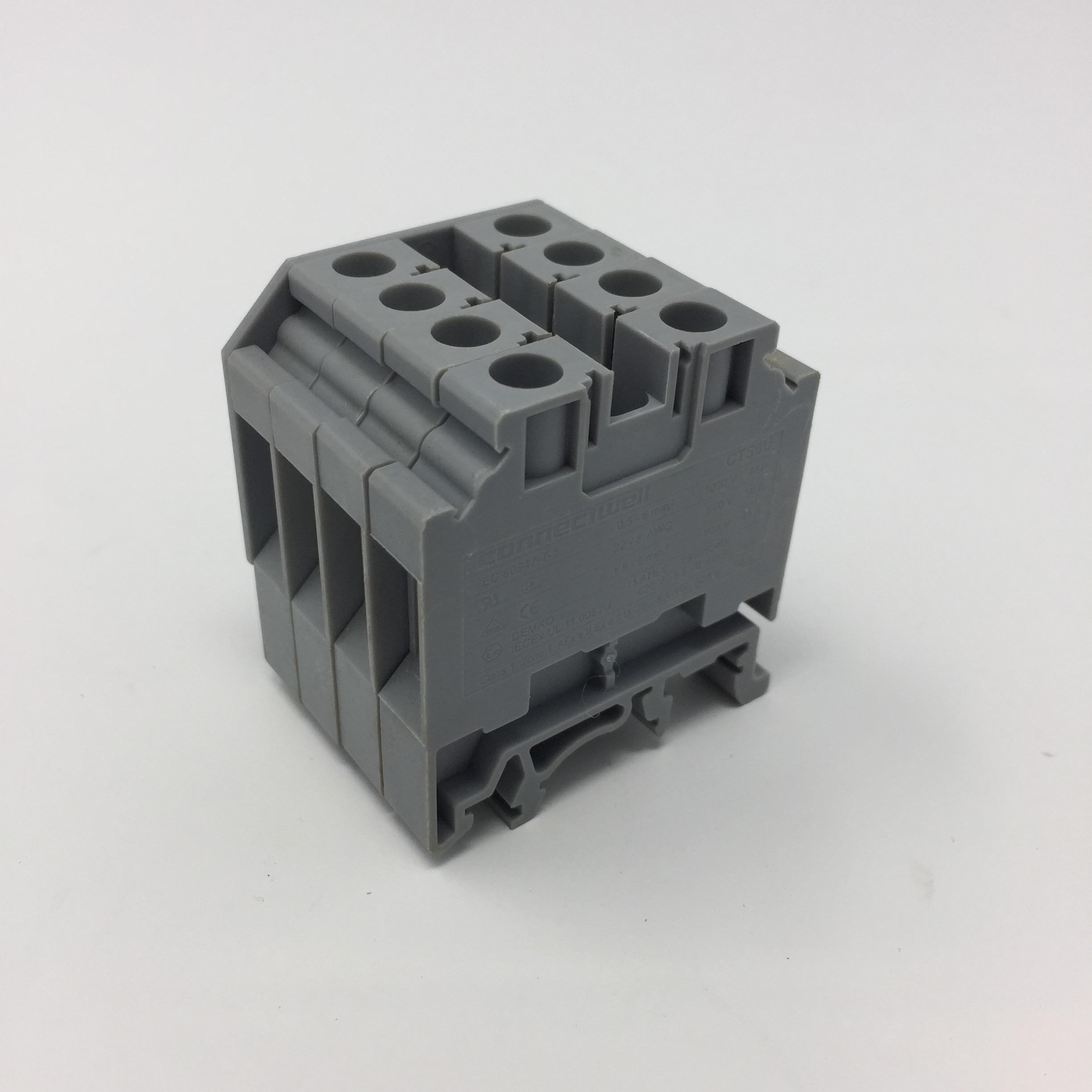

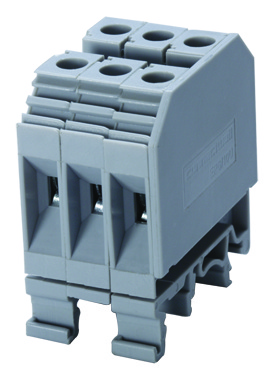

Distribution Block 8 mm, 8 Outputs, HxWxL(mm): 43x48x33.5
Hawk Electronics
Total Stock: 5
Factory Lead Time: TBD
RoHs Compliant
Product Attributes
Hawk Stock
5 reported as of 02/06/24
Factory Stock
100 reported as of 02/06/24
Approvals
IEC, UL
Voltage Rating
1000 V, 600 V
Type of Connection
Screw clamp connection
Torque
0.8 Nm, 14 lb-in
Terminal Width
8 mm
Stripping Length
12 mm
Spec Sheet
PACKAGE INFO
STD Pack 10
Insulation Material
Polyamide 6.6
Height x Length
43 x 47 mm
Current Rating
41 A, 50 A
Wire Range
1.5-6 sq.mm, 22-8 AWG
Series Attributes
Not available at this time.
