Price List
CMC1-2
Total Stock: 60
Factory Lead Time: TBD
RoHs Compliant

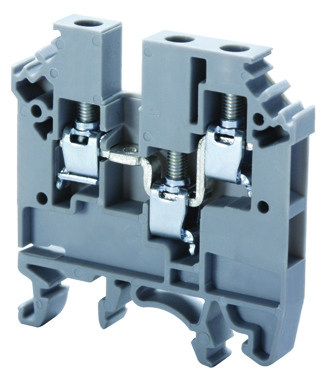

Multi-Connection Terminal, 3t
Hawk Electronics
Total Stock: 60
Factory Lead Time: TBD
RoHs Compliant
Product Attributes
Hawk Stock
60 reported as of 02/06/24
Factory Stock
8000 reported as of 02/06/24
Approvals
CSA, IEC, UL
Voltage Rating
600 V, 630 V, 600V
Type of Connection
3 screw clamps & 1 tapped hole for cross connect
Torque
7 lb-in, 0.5 Nm, 7 lb-in
Terminal Width
6 mm
Stripping Length
9 mm
Spec Sheet
PACKAGE INFO
STD Pack 100
Insulation Material
Polyamide 6.6
Height x Length
47 x 46.5 mm
Current Rating
35 A, 32 A, 35 A
Wire Range
22-10 AWG, 0.2-4 sq.mm, 22-10 AWG
Series Attributes
Not available at this time.
