CDLG2.5
Total Stock: 20
Factory Lead Time: TBD
RoHs Compliant

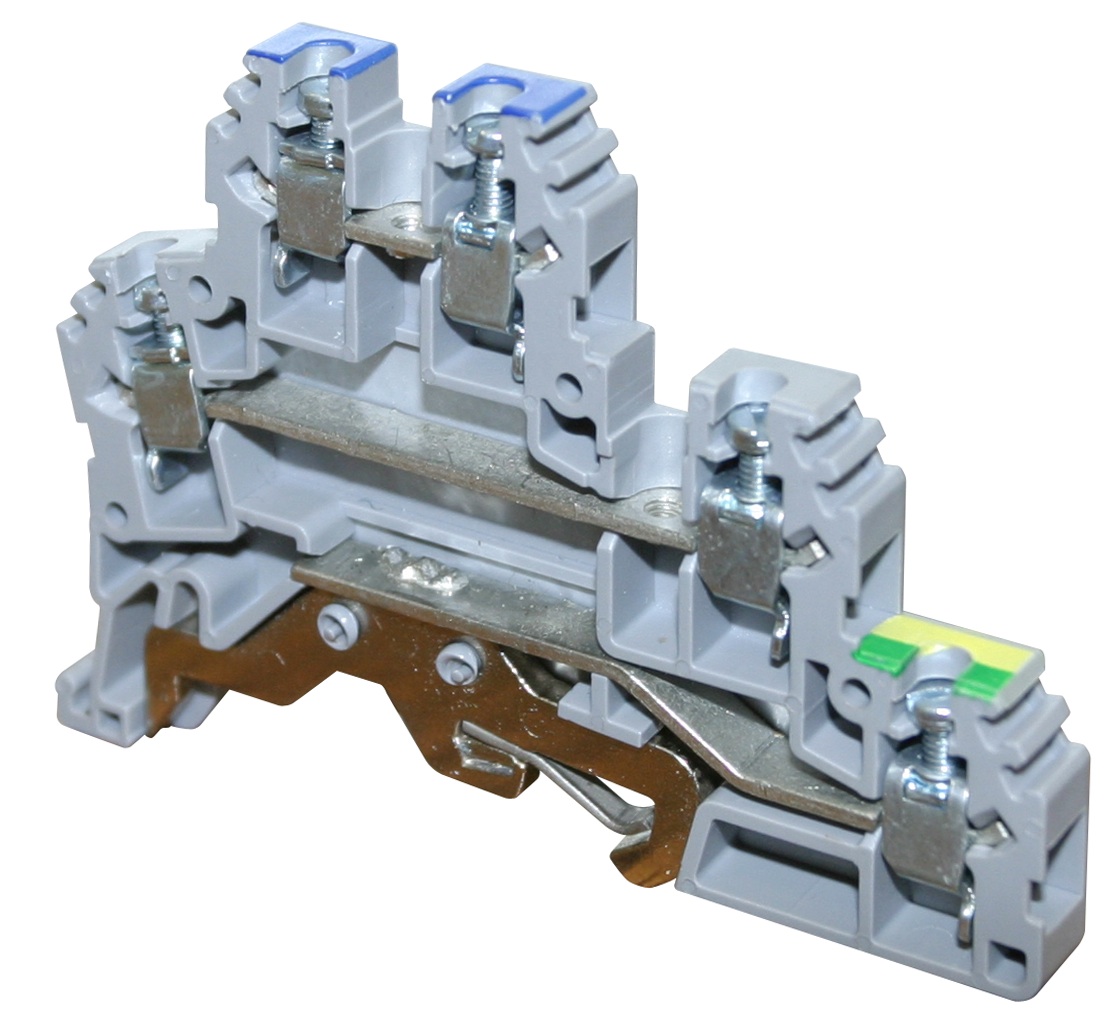

Double & Triple Level Blocks with Ground 6 mm
Hawk Electronics
Total Stock: 20
Factory Lead Time: TBD
RoHs Compliant
Product Attributes
Factory Stock
675 reported as of 02/06/24
Approvals
CSA, IEC, UL
Voltage Rating
300 V, 500 V, 300 V
Type of Connection
5 Screw clamps & 2 tapped holes for cross connect
Torque
4.5 lb-in, 0.4 Nm, 4.5 lb-in
Terminal Width
6 mm
Stripping Length
9 mm
Spec Sheet
PACKAGE INFO
STD Pack 50
Insulation Material
Polyamide 6.6
Height x Length
50 x 71 mm
Current Rating
24 A, 24 A, 24 A
Wire Range
24-12 AWG, 0.25-4 mm, 24-12 AWG
Series Attributes
Not available at this time.
