Price List
CDL4UN
Total Stock: 43
Factory Lead Time: TBD
RoHs Compliant

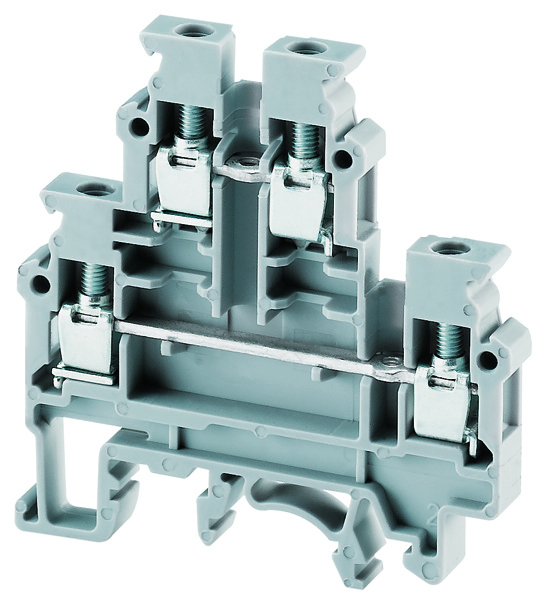

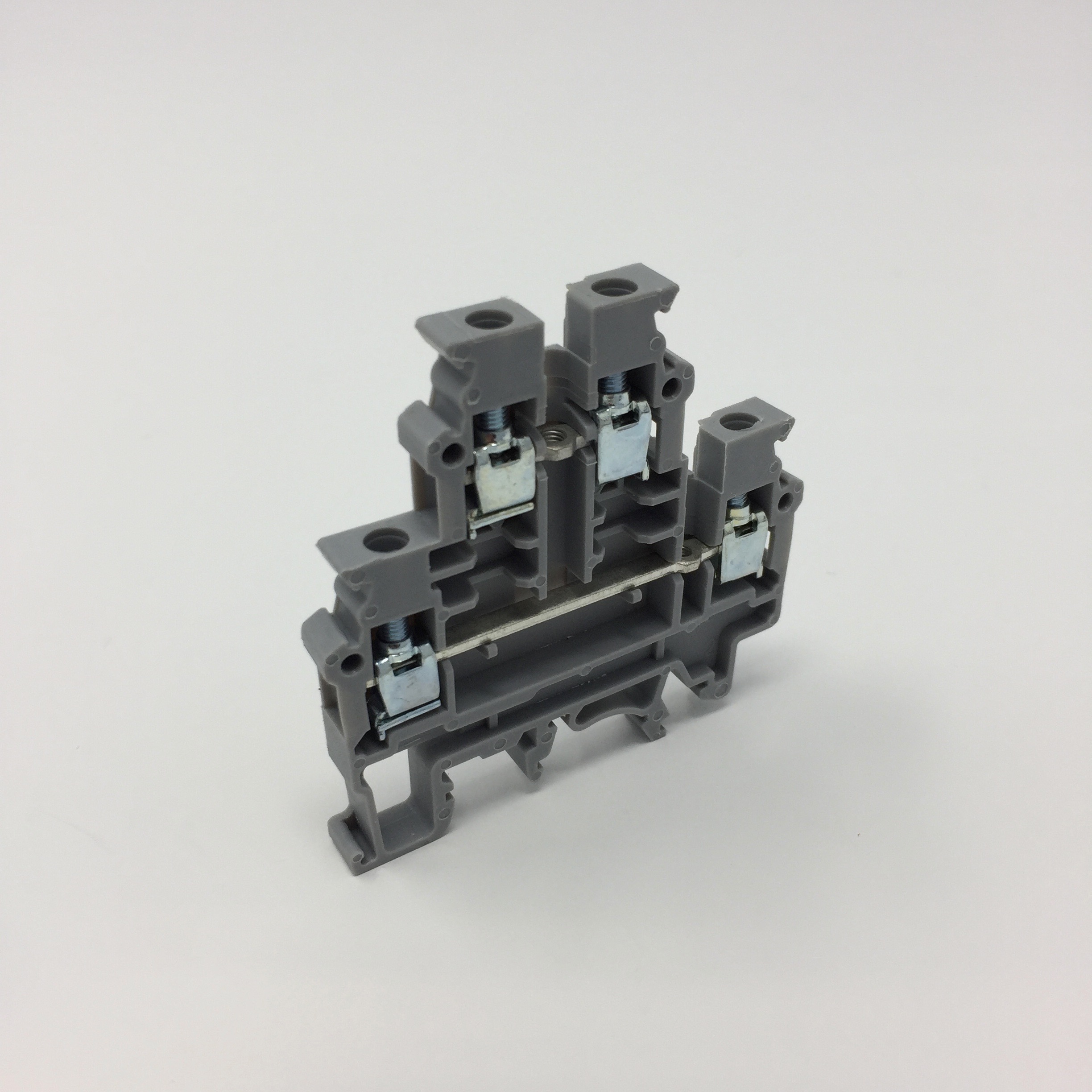

Feed-Through Double Level 6 mm
Hawk Electronics
Total Stock: 43
Factory Lead Time: TBD
RoHs Compliant
Product Attributes
Hawk Stock
86 reported as of 02/06/24
Factory Stock
35800 reported as of 02/06/24
Approvals
CSA, IEC, UL
Voltage Rating
600 V, 800 V, 600 V
Type of Connection
4 screw clamps & 2 tapped holes for cross connection
Torque
7 lb-in, 0.5 Nm, 7 lb-in
Terminal Width
6 mm
Stripping Length
9 mm
Spec Sheet
PACKAGE INFO
STD Pack 100
Insulation Material
Polyamide 6.6
Height x Length
54 x 55.5 mm
Current Rating
35 A, 32 A, 35 A
Wire Range
22-10 AWG, 0.2-4 sq.mm, 22-10 AWG
Series Attributes
Not available at this time.
