CB1038-2

Altech | Terminal Blocks
yellow-timer-icon Factory Lead Time: 5
onlycheckmark RoHs Compliant

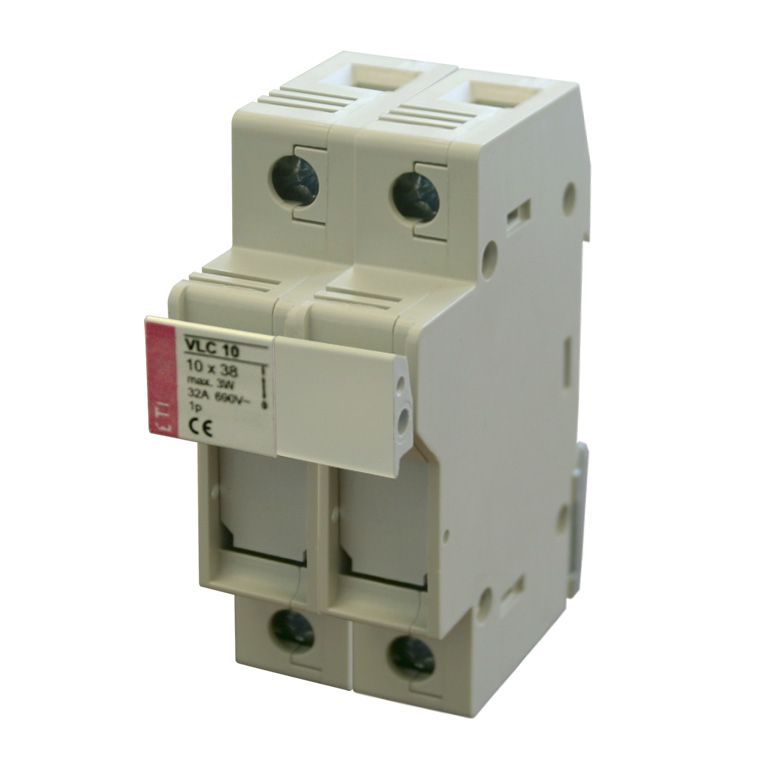

Fuse Holders, 10 x 38 mm and CC Type, 35 mm, No Indicator, Type of Fuses Used: Ø10 x 38 mm, 2 Pole

$13.40

Min: 6  Mult: 6

Product Attributes

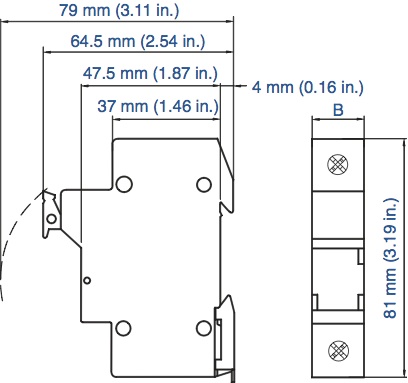

Height x Length

81 x 64.5 mm

UL Rating

600 V AC/DC / 30 A

Type of Connection

2 screw clamps

Torque

2-2.5Nm/ 31lb-in

Terminal Width (B)

35 mm

Stripping Length

11 mm

Spec Sheet

Click Here

PHOTO-2

Click Here


Click Here

PACKAGE INFO

STD Pack 1

Insulation Material

Aculon®

IEC Rating

690 V / 32A

Wire Range

1.5-25sq.mm / 24-4 AWG

Not available at this time.
