CB1038-1/L

Altech | Terminal Blocks
yellow-timer-icon Factory Lead Time: TBD
onlycheckmark RoHs Compliant

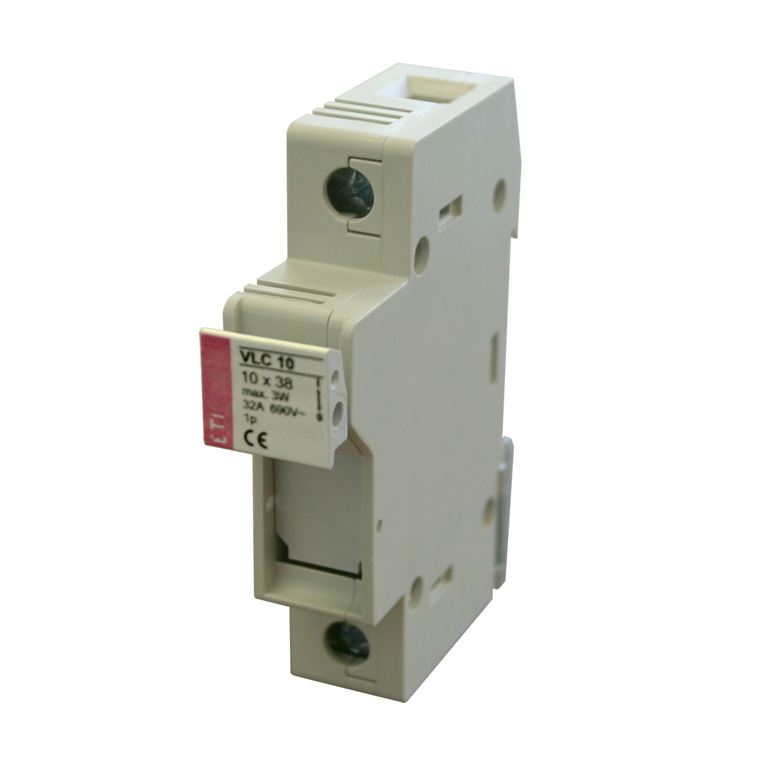

Fuse Holders, 10 x 38 mm and CC Type, 17.5 mm, LED Indicator Type of Fuses Used: Ø10 x 38 mm, ! Pole

$12.60

Min: 1  Mult: 1

Product Attributes

Factory Stock

0 reported as of 10/24/18

UL Rating

600 V AC/DC / 30 A

Type of Connection

2 screw clamps

Torque

2-2.5Nm/ 31lb-in

Terminal Width (B)

17.5 mm

Stripping Length

11 mm

Spec Sheet

Click Here

PHOTO-2

Click Here


Click Here

PACKAGE INFO

STD Pack 1

Insulation Material

Aculon®

IEC Rating

690 V / 32A

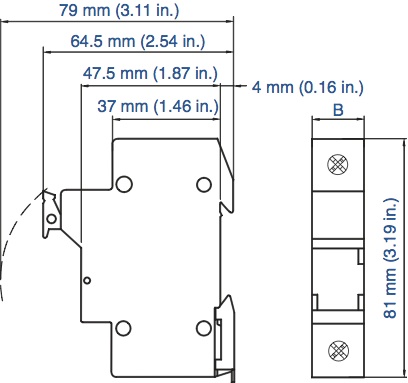

Height x Length

81 x 64.5 mm

Wire Range

1.5-25sq.mm / 24-4 AWG

Not available at this time.
