38075

Altech | Terminal Blocks
green-check-icon Total Stock: 3
yellow-timer-icon Factory Lead Time: TBD
onlycheckmark RoHs Compliant

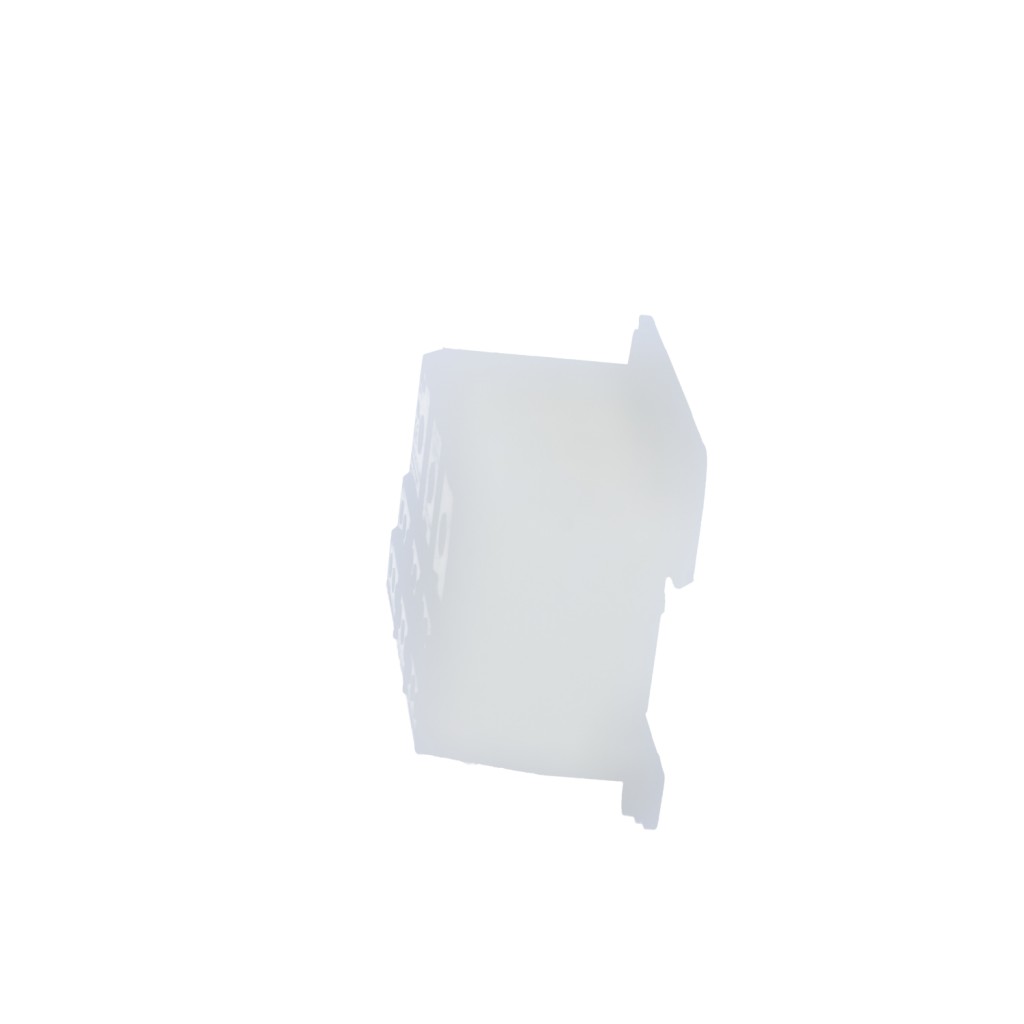

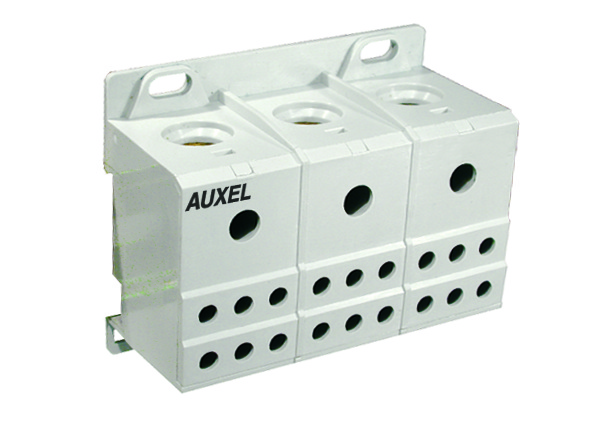

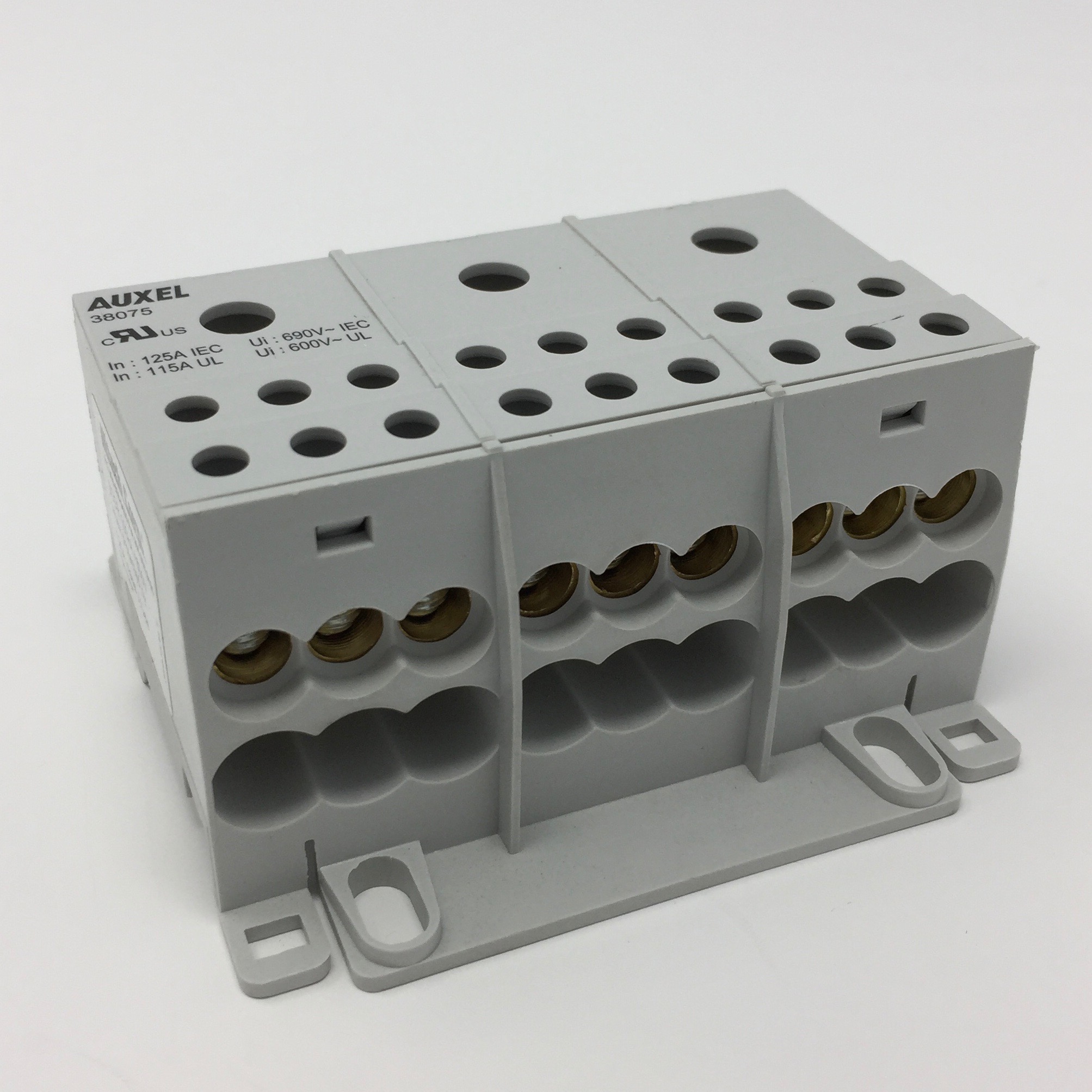

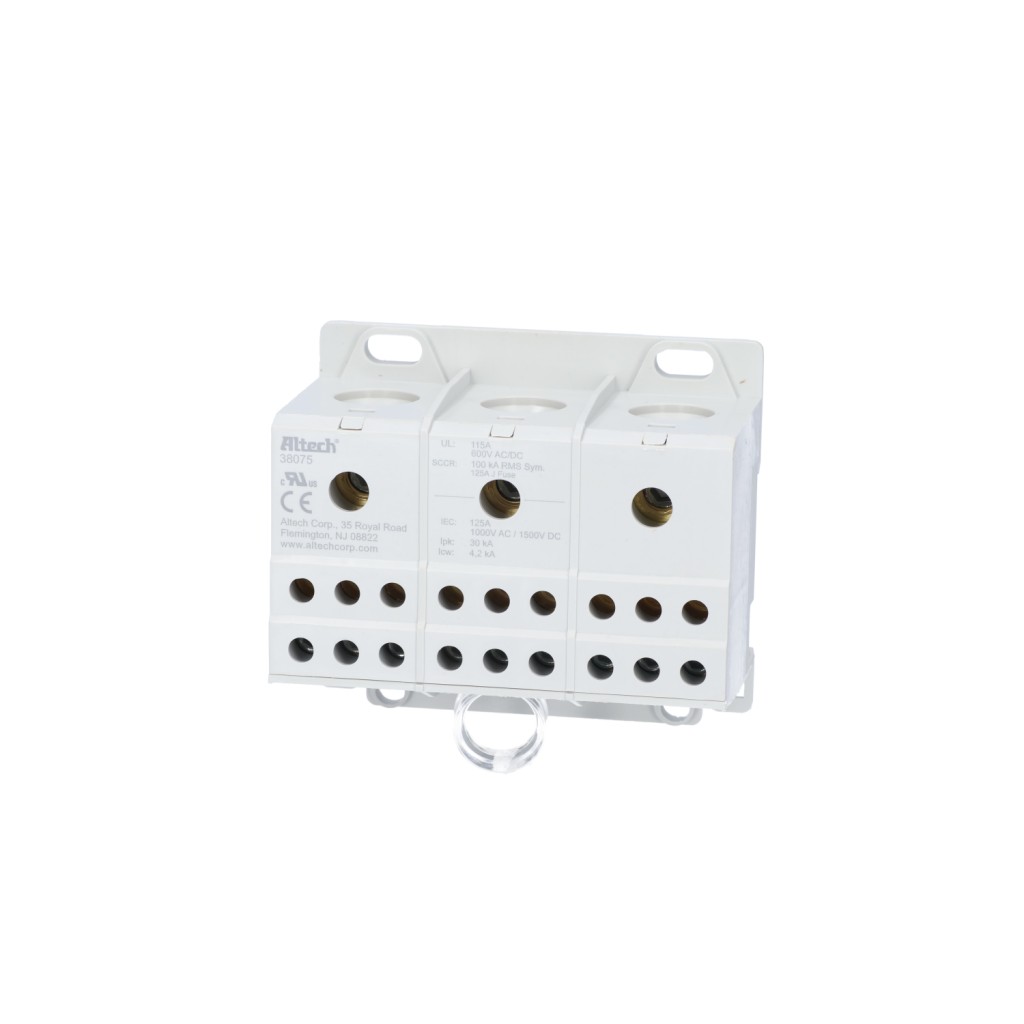

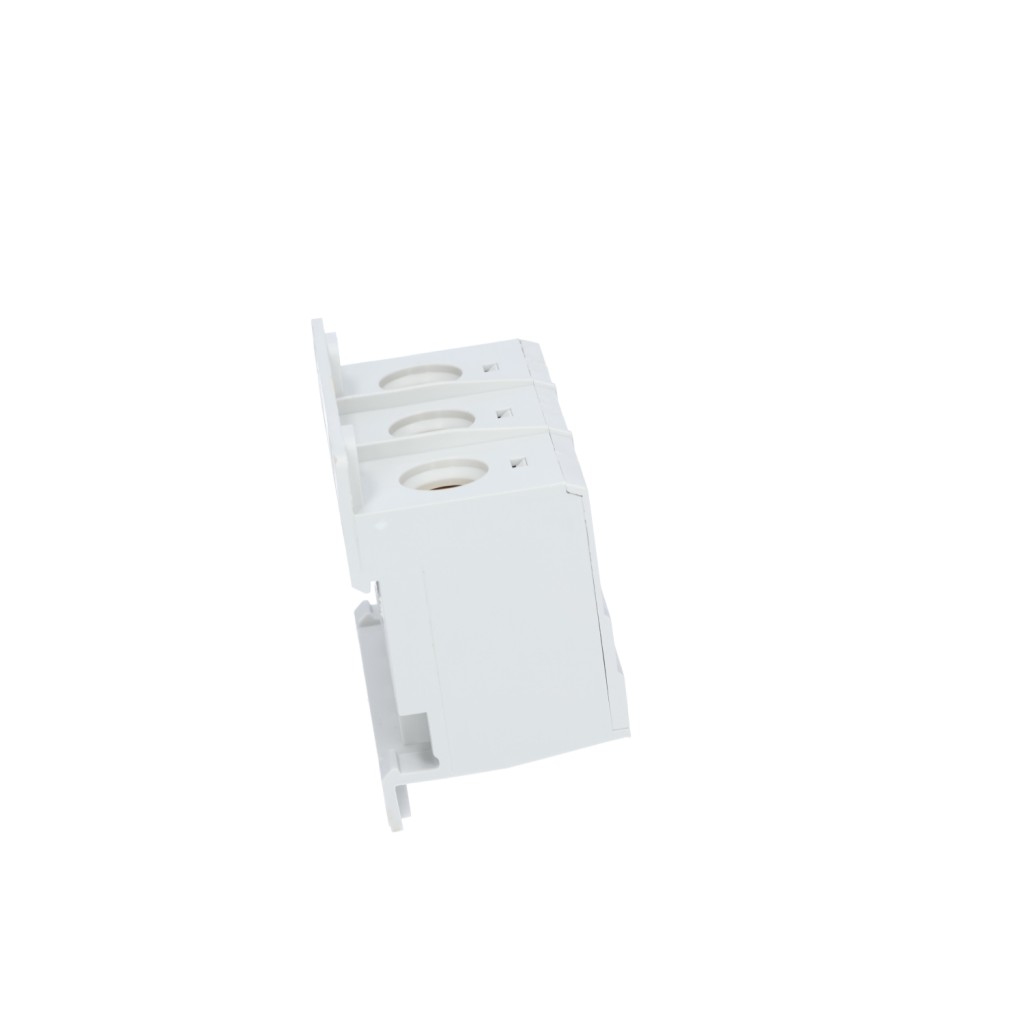

Three Phase Power Distribution Block

$68.00

Min: 1  Mult: 1

Product Attributes

Factory Stock

950 reported as of 02/06/24

Approvals

UL, IEC

Voltage Rating

600 V AC, 690 V AC

Torque

31lb.in, 3.5Nm

Spec Sheet

Click Here

SCCR

100kA

PHOTO-2

Click Here


Click Here

PACKAGE INFO

?

No. of Outputs

3x6, 3x6

No. of Imputs

3x1, 3x1

Material

Housing: Polyamide, Metal Body: Brass

Current Rating

115 A, 115A

Wire Range

8-2 AWG, 10-35mm

Not available at this time.
