filter--iconPrice List

38074

Altech | Terminal Blocks
yellow-timer-icon Factory Lead Time: TBD
onlycheckmark RoHs Compliant

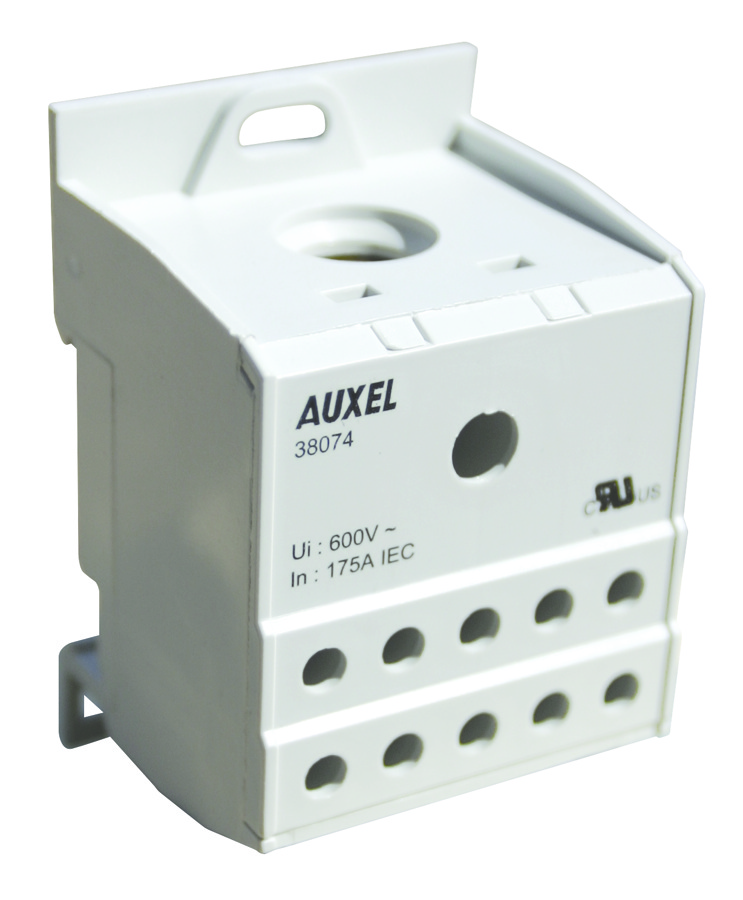

One Phase Power Distribution Block

$51.90

Min: 1  Mult: 1

Product Attributes

Factory Stock

1600 reported as of 02/06/24

Approvals

UL, IEC

Voltage Rating

600 V AC, 690 V AC

Torque

53lb.-in, 6 Nm

Spec Sheet

Click Here

SCCR

100kA

PHOTO-2

Click Here


Click Here

PACKAGE INFO

?

No. of Outputs

10, 10

No. of Imputs

1, 1

Material

Housing: Polyamide, Metal Body: Brass

Current Rating

175A, 175A

Wire Range

6-2/0AWG, 16-70mm

Not available at this time.
