AIS30N15AN024-Q65

Altech | Series Sensors | Sensors
green-check-icon Total Stock: 2
yellow-timer-icon Factory Lead Time: TBD
onlycheckmark RoHs Compliant

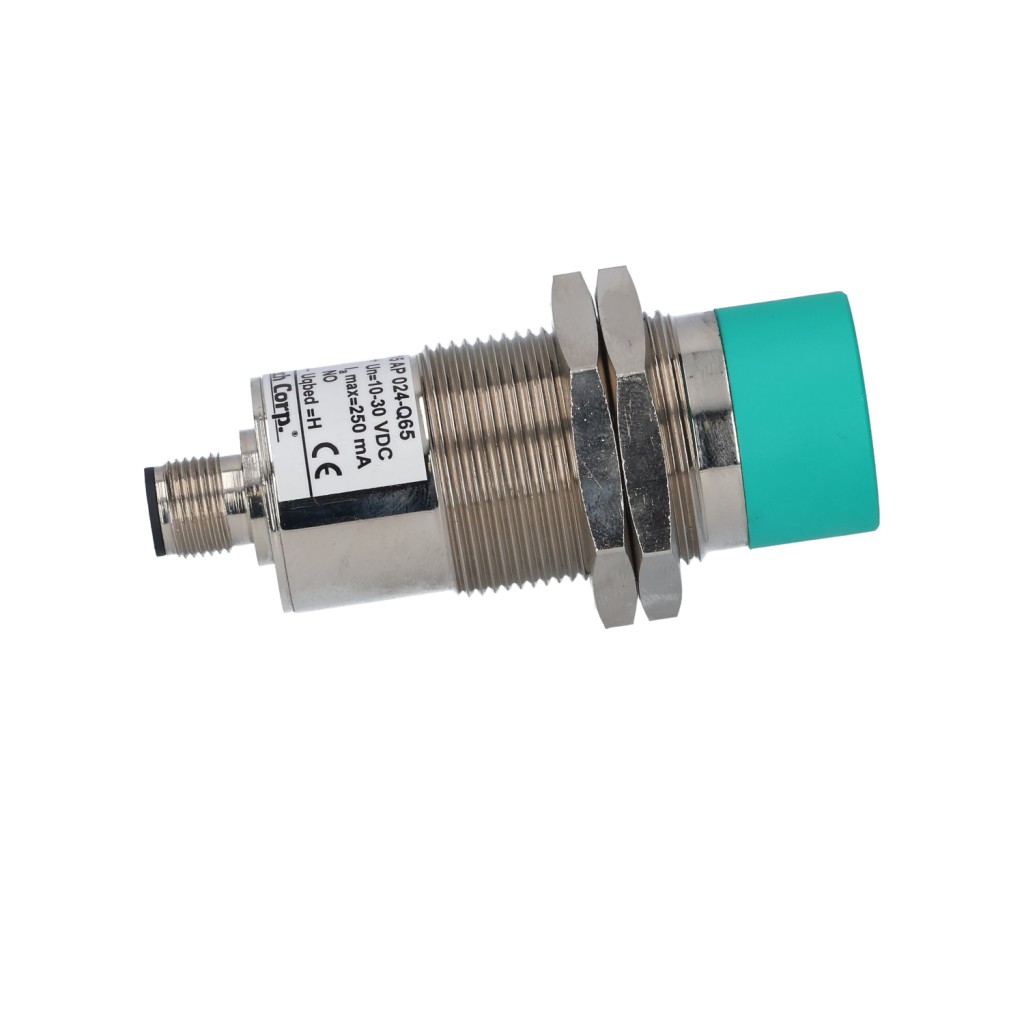

DC - 3 WIRE-STANDARD Brass, Nickel Plated (BN), Cylindrical, Threaded, 10-30V DC, 250mA, LED for Output Energized. M30 Non-Flush Mount. 65 Style Connector 4-pin, Micro style, 12mm (.47 in.). Supplied with brass, nickel plated locknuts. NPN

$59.20

Min: 1  Mult: 1

Product Attributes

Hawk Stock

2 reported as of 02/06/24

Factory Stock

45 reported as of 02/06/24

Attribute 3

Overload Protection

Voltage Drop Across Sensor

≤2.5V

Temperature Drift

≤±30μm/K

Switching Frequency

300 Hz

Sensing Distance

15mm (.59 in.)

Ripple Voltage

≤10%

Repeatability

≤1.0mm


Click Here

No-Load Current

≤15 mA

Max. Load Current

250 mA

Max. Leakage Currrent

≤1 μA

Hysterisis

≤1.5mm

Feature-2

Short Circuit Protection

Feature-1

IEC (529) IP67 (NEMA 1, 3, 4, 6, 12, 13) Protection

Voltage Range

10V-30V
