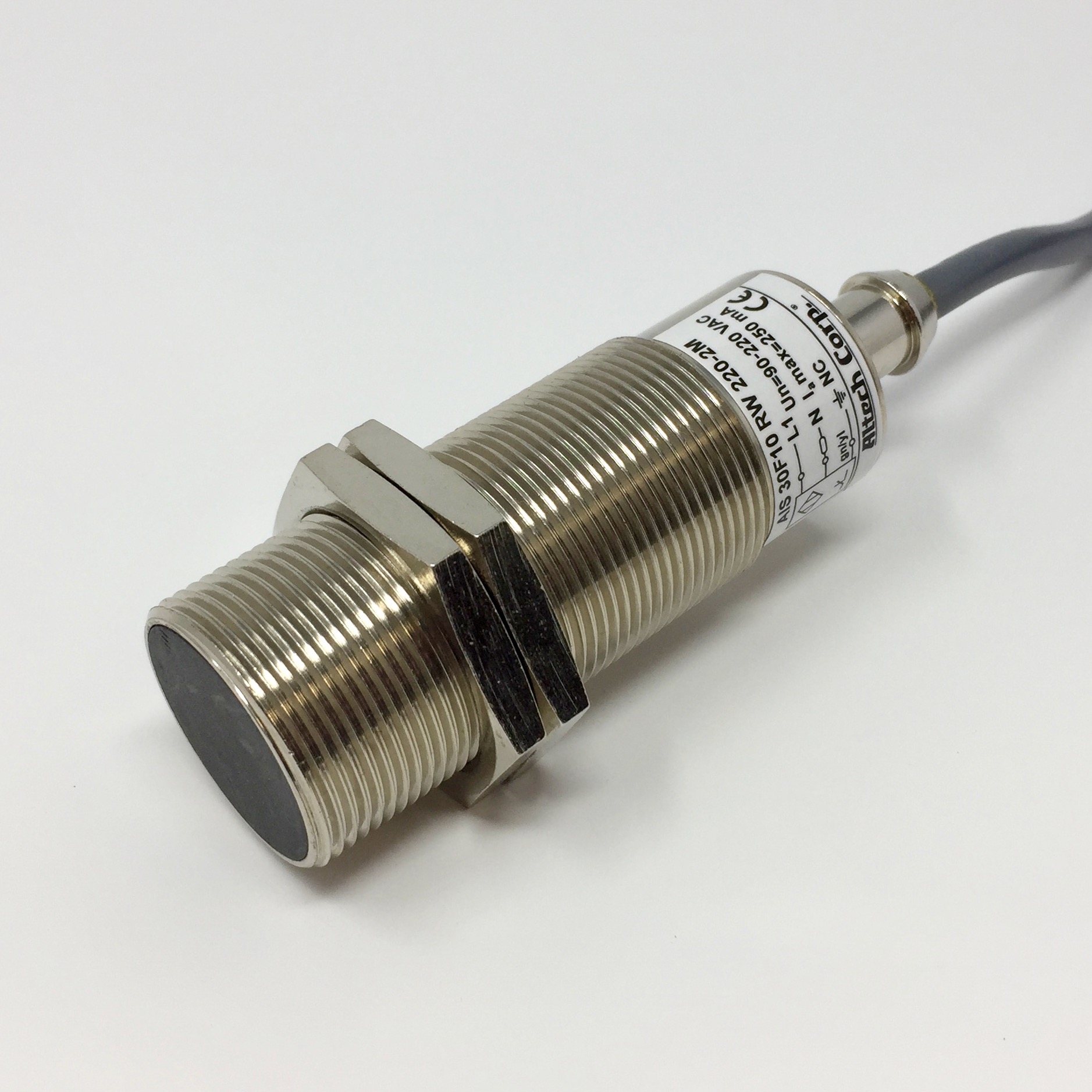

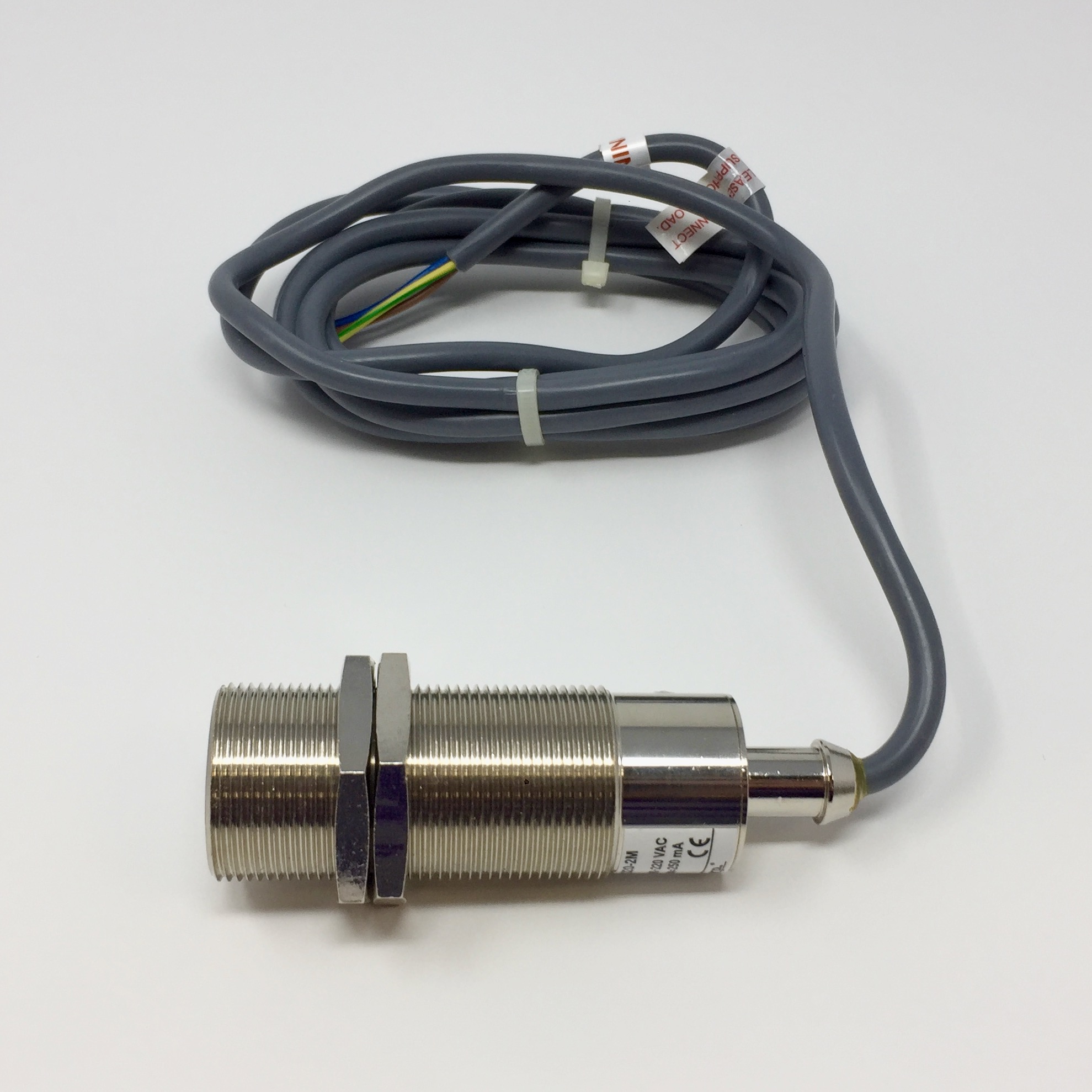

AIS30F10RW220-2M

Altech | Series Sensors | Sensors
green-check-icon Total Stock: 2
yellow-timer-icon Factory Lead Time: TBD
onlycheckmark RoHs Compliant
AC - 2 WIRE-STANDARD Brass, Nickel Plated (BN), Cylindrical, Threaded, 90-250V AC, 250mA, LED for Output Energized. M30 Flush Mount. Fixed Cable PVC 2m (6ft. 6in.) encapsulated oil resistant cable. For other cable lengths and/or PUR cable, please consult Altech. Supplied with brass, nickel plated locknuts. Normally Closed.

$63.00

Min: 1  Mult: 1

Product Attributes

Hawk Stock

2 reported as of 02/06/24

Factory Stock

25 reported as of 02/06/24

Attribute 3

Overload Protection

Voltage Drop Across Sensor

≤9V

Temperature Drift

≤±20μm/K

Switching Frequency

10 Hz

Supply Current

≥10mA

Sensing Distance

10mm (.39 in.)

Repeatability

≤0.3mm


Click Here

Max. Load Current

250 mA

Max. Leakage Currrent

≤3mA

Hysterisis

≤1.0mm

Feature-2

Short Circuit Protection

Feature-1

IEC (529) IP67 (NEMA 1, 3, 4, 6, 12, 13) Protection

Voltage Range

90-250V
