AIS30F10AN024-2M

Altech | Series Sensors | Sensors
yellow-timer-icon Factory Lead Time: TBD
onlycheckmark RoHs Compliant

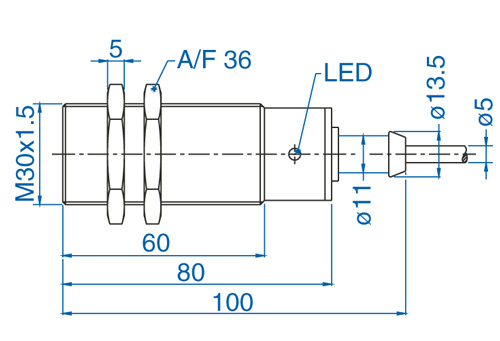

DC - 3 WIRE-STANDARD Brass, Nickel Plated (BN), Cylindrical, Threaded, 10-30V DC, 250mA, LED for Output Energized. M30 Flush Mount. Fixed Cable PVC 2m (6ft. 6in.). For other cable lengths and/or PUR cable, please consult Altech. Supplied with brass, nickel plated locknuts. NPN

$56.00

Min: 1  Mult: 1

Product Attributes

Factory Stock

5 reported as of 02/06/24

Attribute 3

Overload Protection

Voltage Drop Across Sensor

≤2.5V

Temperature Drift

≤±20μm/K

Switching Frequency

300 Hz

Sensing Distance

10mm (.39 in.)

Ripple Voltage

≤10%

Repeatability

≤0.5mm


Click Here

No-Load Current

≤15 mA

Max. Load Current

250 mA

Max. Leakage Currrent

≤1 μA

Hysterisis

1.0mm

Feature-2

Short Circuit Protection

Feature-1

IEC (529) IP67 (NEMA 1, 3, 4, 6, 12, 13) Protection

Voltage Range

10-30V
