AIS18F05AD024-2M

Altech | Series Sensors | Sensors
yellow-timer-icon Factory Lead Time: TBD
onlycheckmark RoHs Compliant

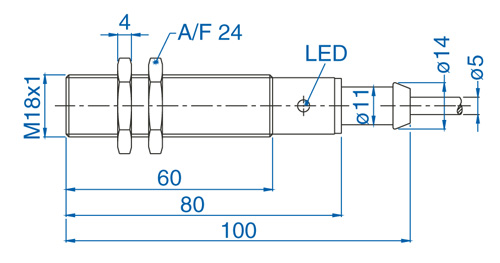

DC - 2 WIRE-STANDARD Brass, Nickel Plated (BN), Cylindrical, Threaded, 10-30V DC, 200mA, LED for Output Energized. M18 Flush Mount. Fixed Cable PVC 2m (6ft. 6in.) encapsulated oil resistant cable. For other cable lengths and/or PUR cable, please consult Altech. Supplied with brass, nickel plated locknuts. Normally open.

$50.60

Min: 1  Mult: 1

Product Attributes

Factory Stock

10 reported as of 02/06/24

Attribute 3

Overload Protection

Voltage Drop Across Sensor

≤4.5V

Temperature Drift

≤±10μm/K

Switching Frequency

200 Hz

Sensing Distance

5mm (.20 in.)

Ripple Voltage

≤10%

Repeatability

≤0.2mm


Click Here

Max. Load Current

200 mA

Max. Leakage Currrent

≤1mA

Hysterisis

≤0.5mm

Holding Current

≤4mA

Feature-2

Short Circuit Protection

Feature-1

IEC (529) IP67 (NEMA 1, 3, 4, 6, 12, 13) Protection

Voltage Range

10-30V
