AIS12N04AP024-Q65

Altech | Series Sensors | Sensors
green-check-icon Total Stock: 2
yellow-timer-icon Factory Lead Time: TBD
onlycheckmark RoHs Compliant

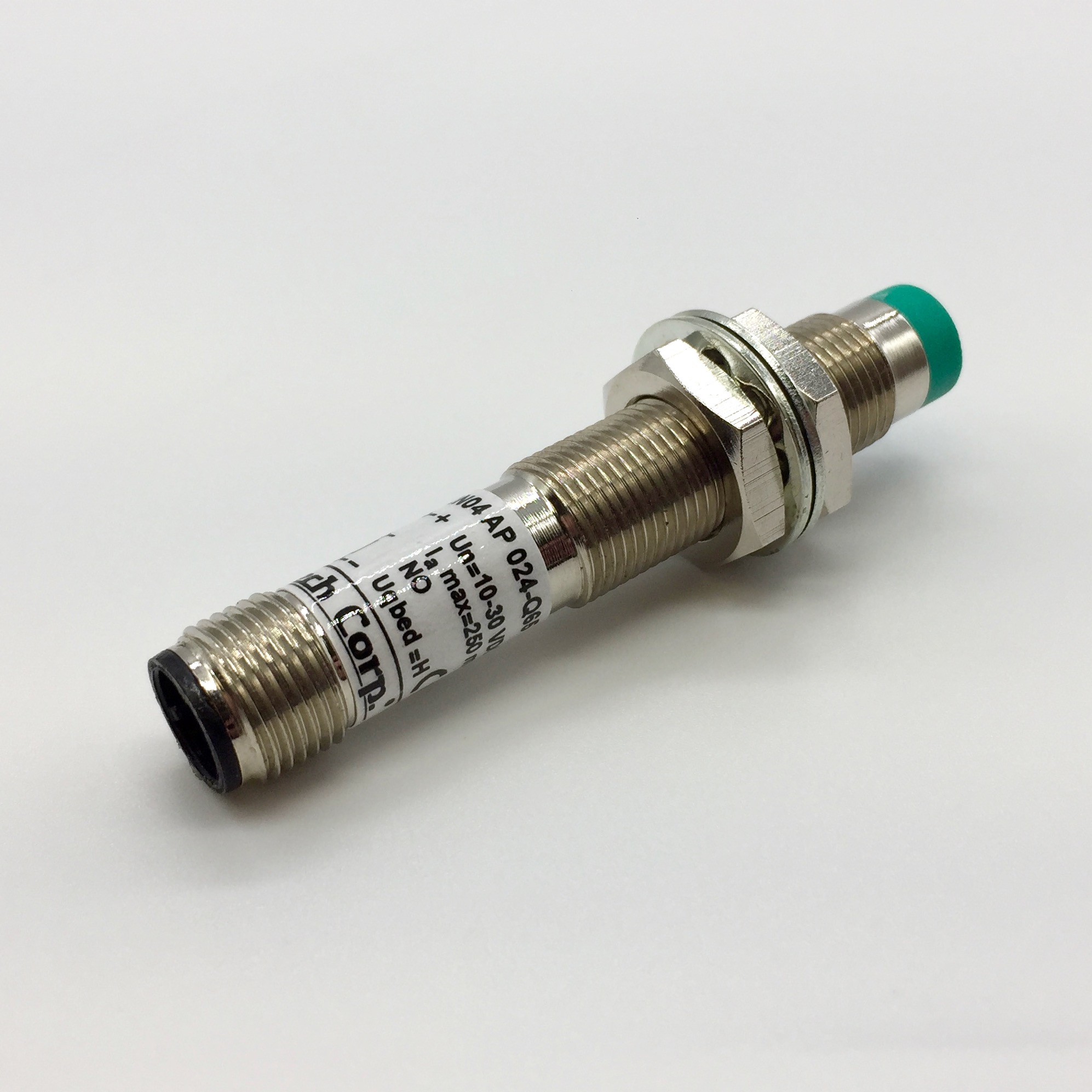

DC - 3 WIRE-STANDARD M12 Non-Flush Mount Brass, Nickel Plated (BN), Cylindrical, Threaded, 10-30V DC, 250mA, LED for Output Energized. 65 Style Connector 4-pin, Micro style, 12mm (.47 in.). M8 is supplied with stainless steel locknuts and M12 is supplied with brass, nickel plated locknuts. PNP

$44.10

Min: 1  Mult: 1

Product Attributes

Hawk Stock

2 reported as of 02/06/24

Factory Stock

80 reported as of 02/06/24

Attribute 3

Overload Protection

Voltage Drop Across Sensor

≤ 2.5V

Temperature Drift

±8μm/K

Switching Frequency

1000 Hz

Sensing Distance

4mm (.16 in.)

Ripple Voltage

≤ 10%

Repeatability

≤ 0.3mm


Click Here

No-Load Current

≤ 15mA

Max. Load Current

250 mA

Max. Leakage Currrent

1μA

Hysterisis

≤ 0.6mm

Feature-2

Short Circuit Protection

Feature-1

IEC (529) IP67 (NEMA 1, 3, 4, 6, 12, 13) Protection

Voltage Range

10-30V
