AIS12F04AN024-2M

Altech | Series Sensors | Sensors
green-check-icon Total Stock: 2
yellow-timer-icon Factory Lead Time: TBD
onlycheckmark RoHs Compliant

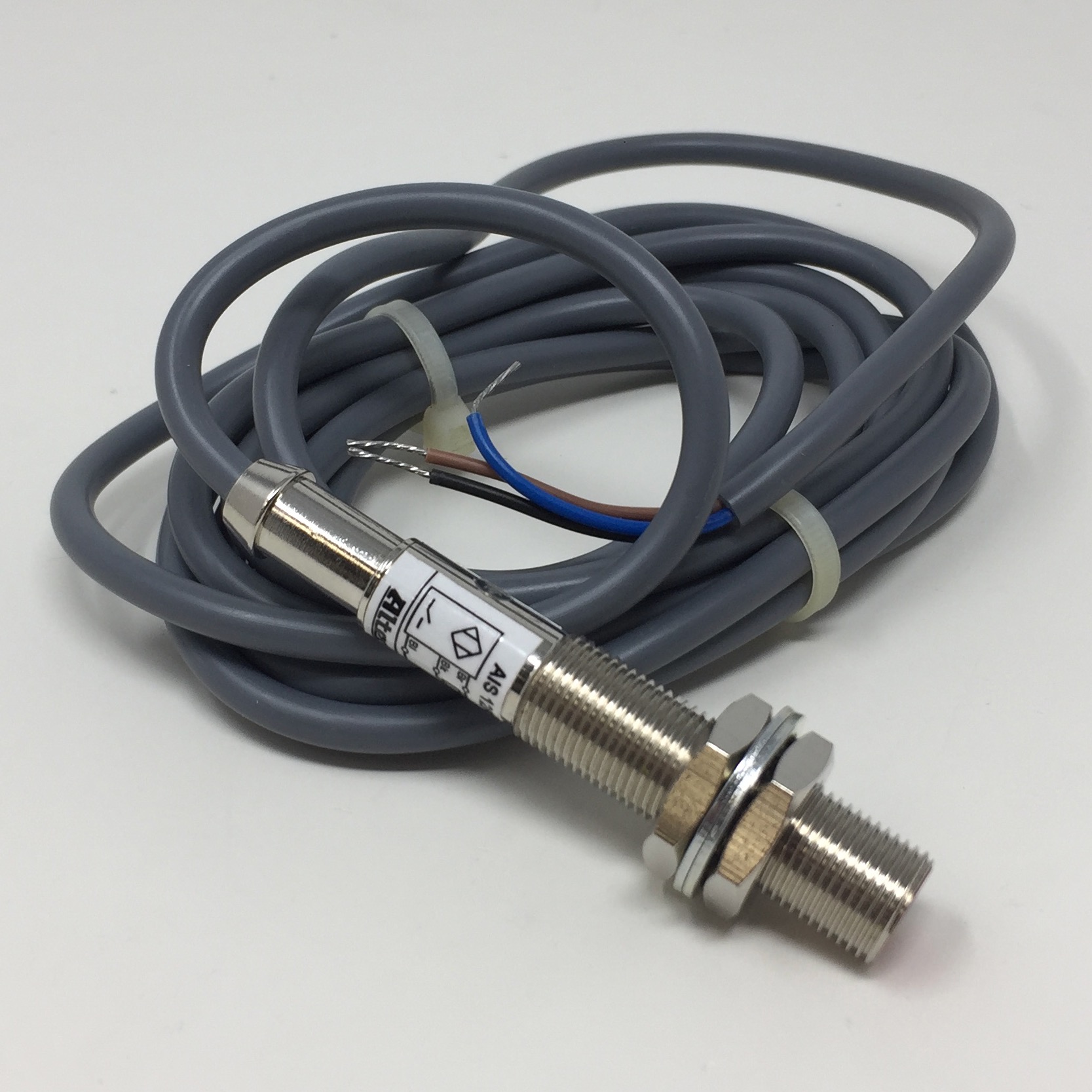

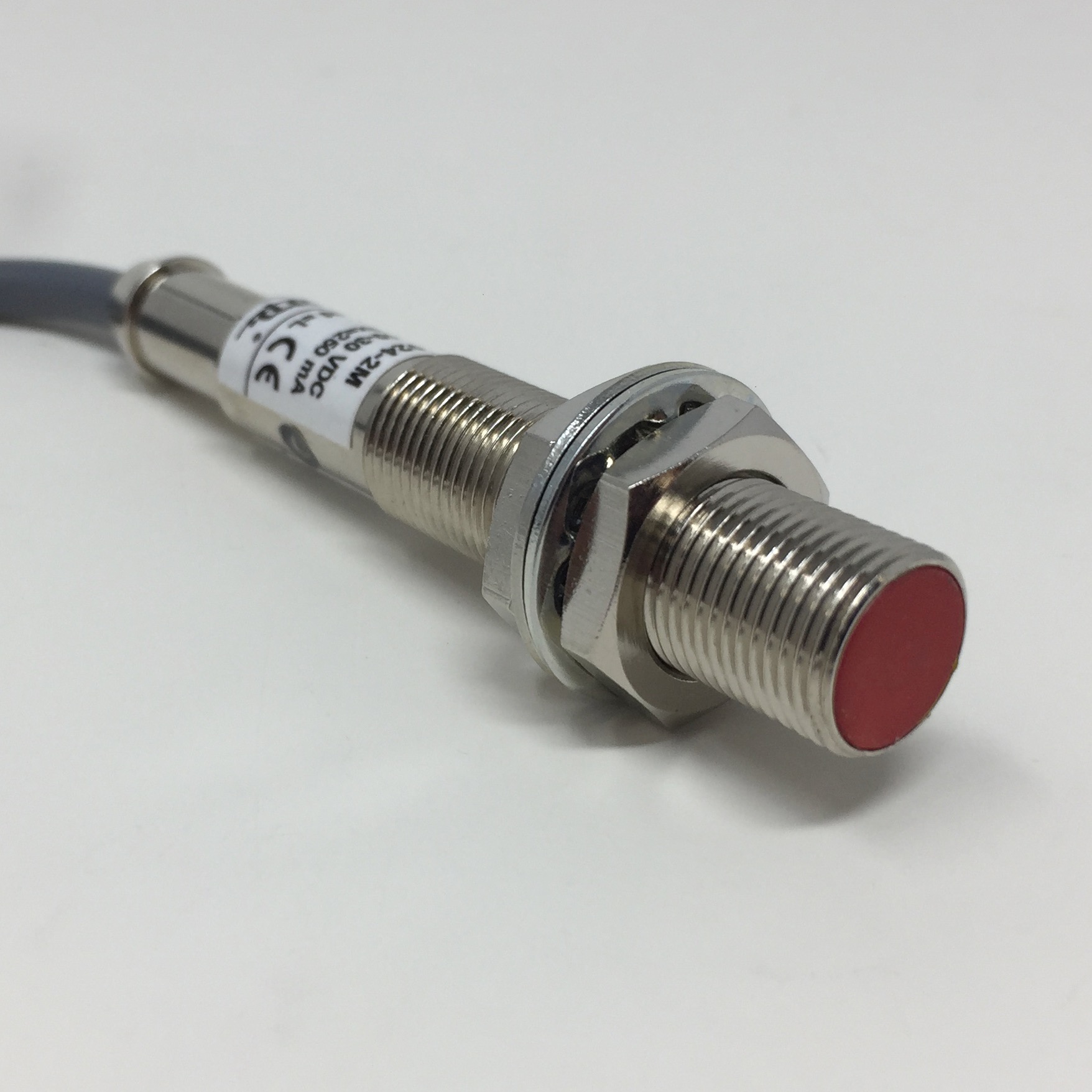

DC - 3 WIRE-EXTENDED SENSING DISTANCE Brass, Nickel Plated (BN), Cylindrical, Threaded, 10-30V DC, 200mA, LED for Output Energized. M12 Flush Mount. Fixed Cable PVC 2m (6ft. 6in.). For other cable lengths and/or PUR cable, please consult Altech. Supplied with brass, nickel plated locknuts. NPN

$42.00

Min: 1  Mult: 1

Product Attributes

Hawk Stock

2 reported as of 02/06/24

Factory Stock

25 reported as of 02/06/24

Attribute 3

Overload Protection

Voltage Drop Across Sensor

≤2.5V

Temperature Drift

≤±8μm/K

Switching Frequency

1000 Hz

Sensing Distance

4mm (.16 in.)

Ripple Voltage

≤10%

Repeatability

≤0.2mm


Click Here

No-Load Current

≤15mA

Max. Load Current

200 mA

Max. Leakage Currrent

≤1μA

Hysterisis

≤0.4mm

Feature-2

Short Circuit Protection

Feature-1

IEC (529) IP67 (NEMA 1, 3, 4, 6, 12, 13) Protection

Voltage Range

10-30V
