611.1431.022

Factory Lead Time: TBD

RoHs Compliant

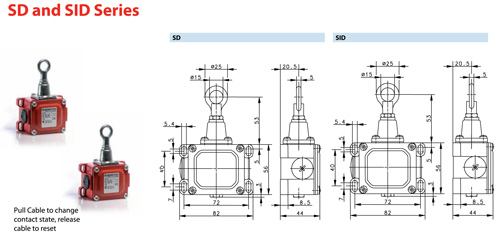

Altech SD and SID Series, SID With [Designation - SID-UV1Z] and [Maximum Switching Voltage - 240V] and [Maximum Switching Amperage - 16A].

Factory Stock

0 reported as of 12/28/16

Altech URL

Click Here

Type

Metal Body with Tension Monitor

Switching Frequency

max. 20/min

Rating Insulation Voltage

400VAC

Protection Rating

IP65


Click Here

Operating Temperature

-30 Â°C to 80 Â°C

Mechanical Service Life

1 x 106

Maximum Switching Voltage

240V

Maximum Switching Amperage

16A

Max. span length

26.2 Ft. (8 Meters)

Designation

SID-UV1Z

B10d

On Request

Approvals

CSA

Utilization Category

AC-15, Ue/Ie 240 V / 3A

Not available at this time.
