601.3531.367

Altech | Cable-Pull-Manual-Reset | Saftey Rope Pull
yellow-timer-icon Factory Lead Time: TBD
onlycheckmark RoHs Compliant

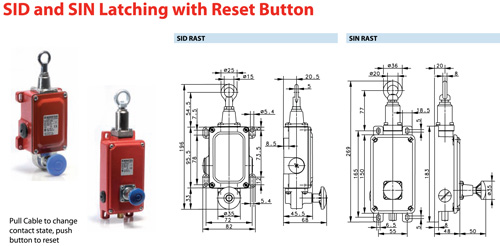

Altech SIEM and SID Latchingwith Reset Button, SIN RAST With [Designation - SIN-UV1Z P-RAST] and [Maximum Switching Voltage - 240V] and [Maximum Switching Amperage - 10A].

$844.00

Min: 1  Mult: 1

Product Attributes

Altech URL

Click Here

Type

Metal Body with Tension Monitor

Switching Frequency

≤ 20/min

Rating Insulation Voltage

400VAC

Protection Rating

IP65


Click Here

Operating Temperature

-30 °C to 80 °C

Mechanical Service Life

1 x 106

Maximum Switching Voltage

240V

Maximum Switching Amperage

10A

Max. span length

196.8 Ft. (60 Meters)

Designation

SIN-UV1Z P-RAST

B10d

On Request

Approvals

CSA

Utilization Category

AC-15, U /Ie 240 V / 3 A

Not available at this time.
