601.2991.101

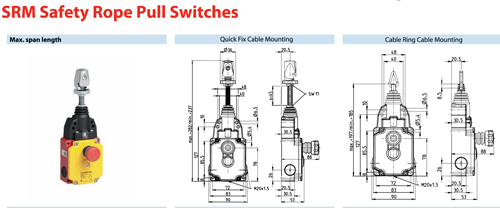

Altech | Bernstein Rope Pull Safety Switch | Saftey Rope Pull
yellow-timer-icon Factory Lead Time: TBD
onlycheckmark RoHs Compliant
Altech SRM Safety Rope Pull Switches, Cable Ring Cable Mounting 3 NC/1 NO With [Type No. - SRM-A2Z/U1Z-LU-300-E] and [Maximum Switching Voltage - 240V] and [Maximum Switching Amperage - 10A].

$368.40

Min: 1  Mult: 1

Product Attributes

Altech URL

Click Here

Type No.

SRM-A2Z/U1Z-LU-300-E

Switching Frequency

≤ 20/min

Rate Insulation Voltage

250VAC

Protection Rating

IP67


Click Here

Operating Temperature

-30 °C to 80 °C

Mechanical Service Life

1 x 105

Maximum Switching Voltage

240V

Maximum Switching Amperage

10A

Max. span length

246 Ft. (75 Meters) with remote monitoring

B10d

0.2 Million

Approvals

CSA, BG

Utilization Category

AC-15, Ue/Ie 240V 3A; 120V/6A DC-13UE/Ue 250V/0.27; 125V/0.55A

Not available at this time.
