601.1811.133

Altech | Rope Pull Safety Switch Hardware | Saftey Rope Pull
yellow-timer-icon Factory Lead Time: TBD
onlycheckmark RoHs Compliant

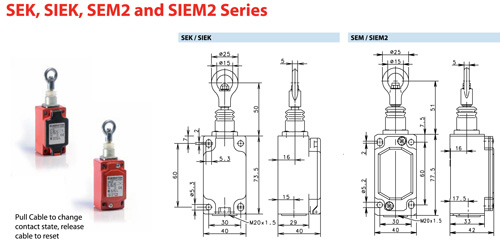

Altech SEK, SIEK, SEM2 and SIEM2 Series, SEK / SIEK With [Designation - SEK-U1Z] and [Maximum Switching Voltage - 240V] and [Maximum Switching Amperage - 10A]. Updated 3/12/2020

$71.40

Min: 1  Mult: 1

Product Attributes

Altech URL

Click Here

Type

Plastic Body without Tension Monitor

Switching Frequency

≤ 50/min

Rating Insulation Voltage

400VAC

Protection Rating

IP65


Click Here

Operating Temperature

-30 °C to 80 °C

Mechanical Service Life

1 x 106

Maximum Switching Voltage

240V

Maximum Switching Amperage

10A

Max. span length

19.6 Ft. (6 Meters)

Designation

SEK-U1Z

B10d

On Request

Approvals

CSA

Utilization Category

AC-15, Ue/Ie 240 V / 3A

Not available at this time.
