filter--iconPrice List

601.1411.868

Altech | Cable-Pull-Manual-Reset | Saftey Rope Pull
yellow-timer-icon Factory Lead Time: TBD
onlycheckmark RoHs Compliant

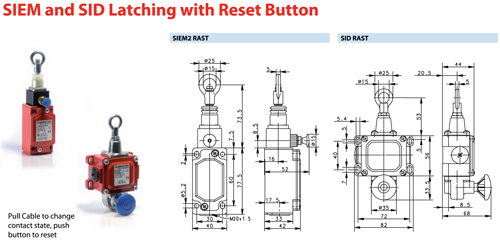

Altech SIEM and SID Latchingwith Reset Button, SID RAST With [Designation - SC-U1 P-RAST] and [Maximum Switching Voltage - 240V] and [Maximum Switching Amperage - 16A].

$239.00

Min: 1  Mult: 1

Product Attributes

Factory Stock

2 reported as of 02/06/24

Altech URL

Click Here

Type

Metal Body without Tension Monitor

Switching Frequency

≤ 20/min

Rating Insulation Voltage

400VAC

Protection Rating

IP65


Click Here

Operating Temperature

-30 °C to 80 °C

Mechanical Service Life

1 x 106

Maximum Switching Voltage

240V

Maximum Switching Amperage

16A

Max. span length

26.2 Ft (8 Meters)

Designation

SC-U1 P-RAST

B10d

On Request

Approvals

CSA

Utilization Category

AC-15, U /Ie 240 V / 3 A

Not available at this time.
