KFDC54R

Altech | Series Sensor-Acc | Cable & Dist. Box
yellow-timer-icon Factory Lead Time: TBD
onlycheckmark RoHs Compliant

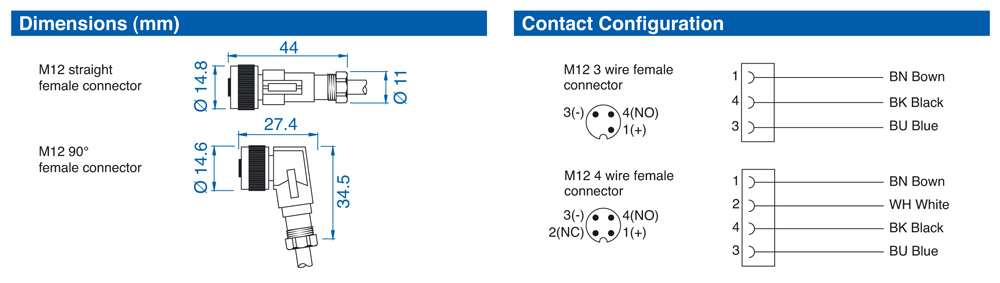

65 Style Connectors - M12, 3 and 4 Wire Female with 5m Cables. M12 with PUR Cable. Cable Length 5m. 4 wire Cable Type, Straight.

$47.50

Min: 1  Mult: 1

Product Attributes

Factory Stock

0 reported as of 12/19/16

Isolation Voltage

2500V; 50Hz; 5min.

No. of Conductors on Cable Section

3x0.34mm2 and 4x0.34mm2

Nominal Current

4A

Nominal Voltage

320V DC/ 250V AC


Click Here

Protection Degree in Accordance with EN 60531

IP67

Temperature Limits

-30°C / +90°C (steady installation)

Test Voltage in Accordance with DIN VDE 0112

2.5KV

Weight

5m 190g • 10m 380g • 15m 520g

Wire Sleeve Material

PVC

Cable Bending Radius

15 times external diameter moving installation 10 times external diameter steady installation

External Sleeve Color

Grey-RAL 7001

Cable External Diameter

3 and 4 wires = 5.2mm (±0.2mm)

Cable Marks

PVC/PVC UL/CSA

Cable Type

PVC/PVC

Conductors Structure

42x0.1mm in class 6

Connector Color

Grey-RAL 7035

Connector Operating Temperature Limits

-25° / +90°C

Connector Polarity

3 and 4 wire

Contact Material

CuSn

Contact Resistance

<5mΩ

Contact Surface Covering Material

Au

Wiring Nut Features

14.8mm external dia. M12x1 threading

Not available at this time.
