91.842

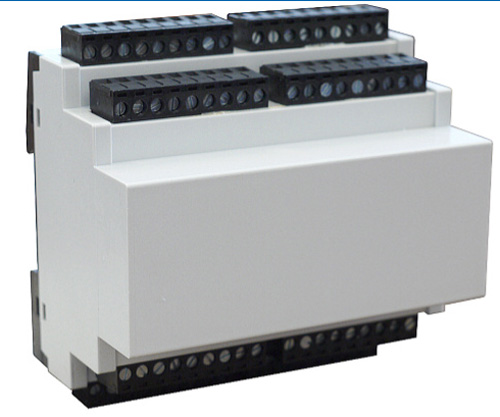

Altech | KU4100 | Din Rail
yellow-timer-icon Factory Lead Time: TBD
onlycheckmark RoHs Compliant
72 Terminal, Pluggable PCB Plugs/Headers, Pluggable PCB Terminals, 35 mm DIN Rail

$80.10

Min: 1  Mult: 1

Product Attributes

Factory Stock

0 reported as of 07/11/19

Color

Light Gray Cover, Black Base and Terminals

Temperature Range

Up to 115°C (239°F)

Spec Sheet

Click Here

Recommended Torque

0.4Nm

PHOTO-1

Click Here


Click Here

PCB Locations:

(2) Vertical, Parallel

PCB Connection

Machine Solder

Housing Material

Glass-filled Polycarbonate

Electrical

12A, 250V, 28-14 AWG

Web Page

Click Here
