filter--iconPrice List

91.803

Altech | KU4100 | Din Rail
yellow-timer-icon Factory Lead Time: TBD
onlycheckmark RoHs Compliant

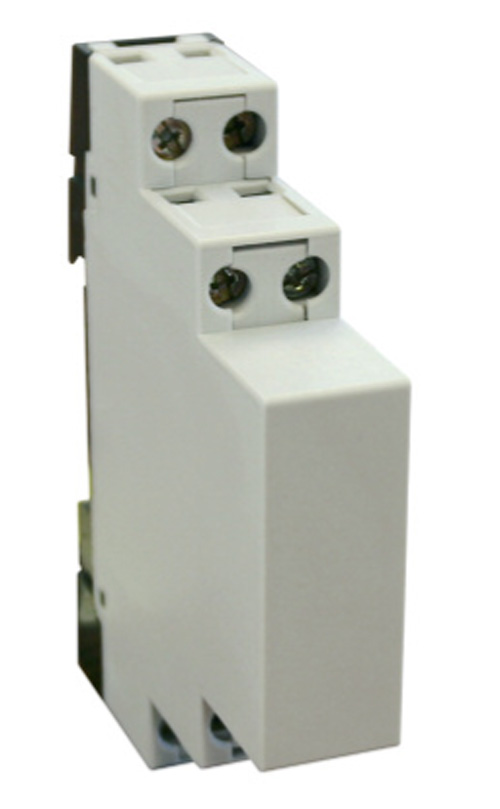

8 Terminal, High Current PCB Blocks, 35 mm DIN Rail

$26.70

Min: 1  Mult: 1

Product Attributes

Factory Stock

0 reported as of 10/09/18

Color

Light Gray Cover, Black Base and Terminals

Temperature Range

Up to 115°C (239°F)

Spec Sheet

Click Here

Recommended Torque

1.2Nm

PHOTO-1

Click Here


Click Here

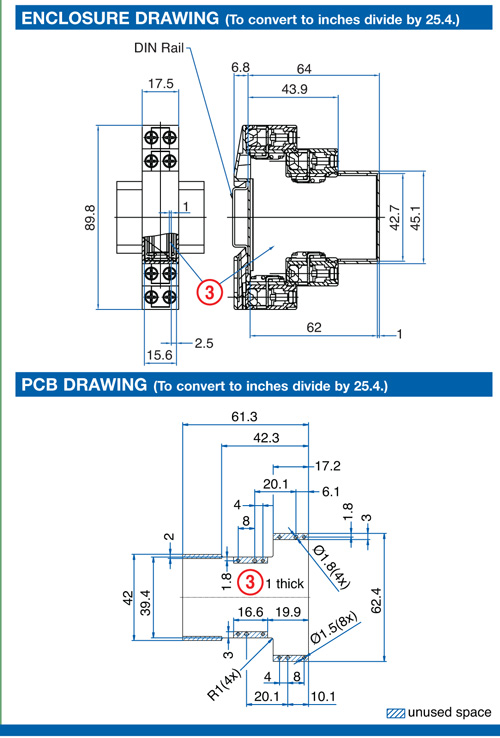

PCB Locations:

(1) Vertical, Perpendicular

PCB Connection

Machine Solder

Housing Material

Glass-filled Polycarbonate

Electrical

40A, 250V, 20-8 AWG

Web Page

Click Here

Not available at this time.
