91.501

Altech | KU4000 | Din Rail
yellow-timer-icon Factory Lead Time: TBD
onlycheckmark RoHs Compliant

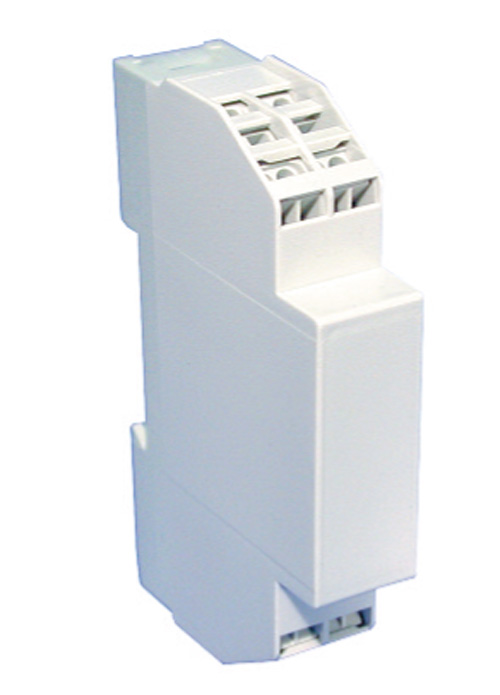

8 Terminal Vertical PCB Screw Clamp, Right Angle Pins, 35 mm DIN or optional panel mounting*

$27.70

Min: 1  Mult: 1

Product Attributes

Factory Stock

0 reported as of 07/13/17

Color

Light Gray

Temperature Range

Up to 125°C (257°F)

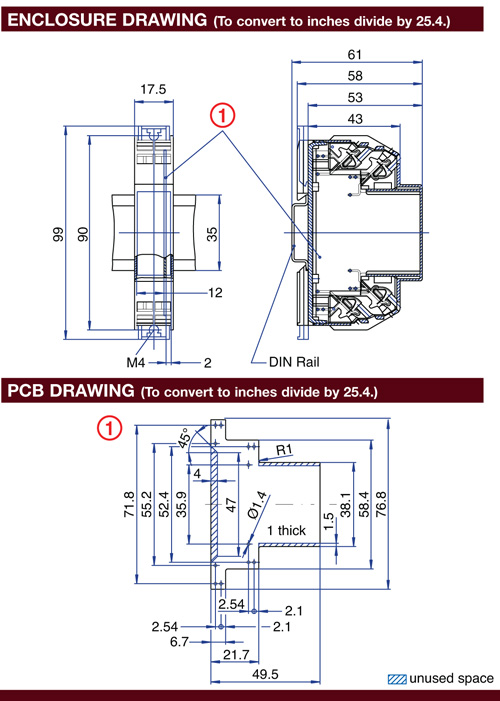

Spec Sheet

Click Here

PHOTO-1

Click Here


Click Here

PCB Connection

Machine Solder/ Wire Jumper

Max. PCB's:

(1) Vertical

Housing Material

Glass-filled Polycarbonate

Electrical

10A 300V, 26-14 AWG

Web Page

Click Here

Not available at this time.
