filter--iconPrice List

91.345

Altech | KU4000 | Din Rail
yellow-timer-icon Factory Lead Time: TBD
onlycheckmark RoHs Compliant

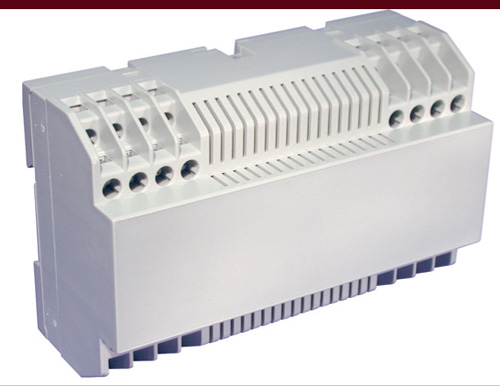

32 Terminal, Horizontal PCB Screw Clamp with vent slots, Straight Pins, 35 mm DIN Rail or optional panel mounting*

$70.80

Min: 1  Mult: 1

Product Attributes

Factory Stock

9 reported as of 02/06/24

Color

Light Gray

Temperature Range

Up to 125°C (257°F)

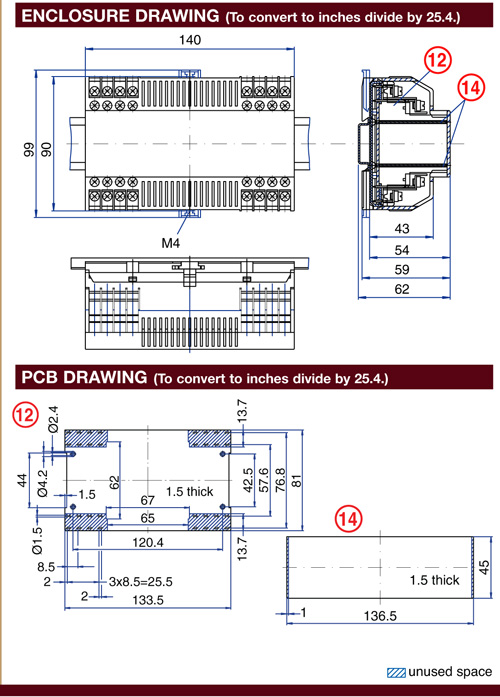

Spec Sheet

Click Here

Recommended Torque

0.8Nm

PHOTO-1

Click Here


Click Here

PCB Connection

Machine Solder

Max. PCB's:

(1) Horizontal

Housing Material

Glass-filled Polycarbonate

Electrical

16A, 300V, 22-14 AWG

Web Page

Click Here

Not available at this time.
