91.001

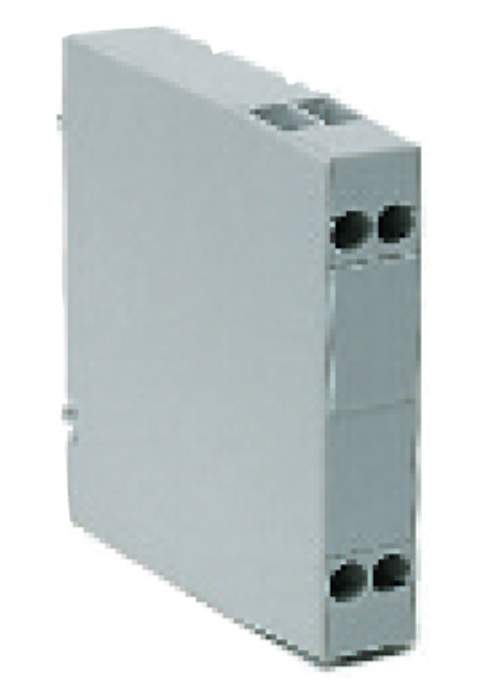

Altech | KO4070 | Din Rail
yellow-timer-icon Factory Lead Time: TBD
onlycheckmark RoHs Compliant
4 Terminal, Standard Length Pins, 35 mm DIN Rail

$12.50

Min: 1  Mult: 1

Product Attributes

Factory Stock

80 reported as of 02/06/24

Color

Light Gray

Temperature Range

Up to 125°C (257°F)

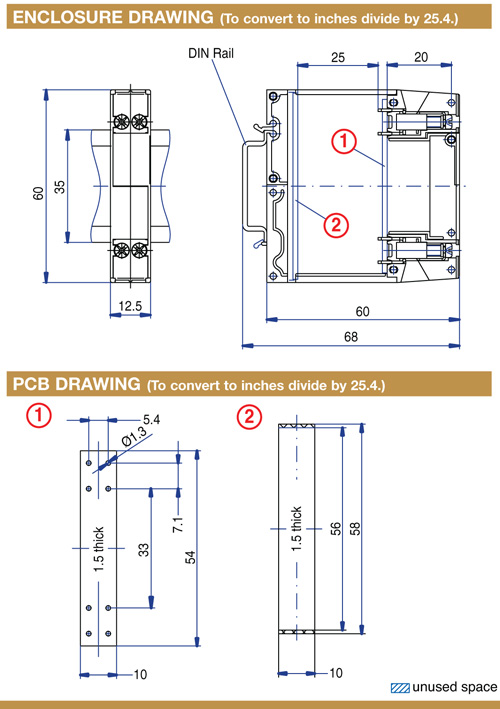

Spec Sheet

Click Here

Recommended Torque

0.8Nm

PHOTO-1

Click Here


Click Here

PCB Locations:

(2) Vertical, Parallel

PCB Connection

Solder Pins

Housing Material

Glass-filled Polycarbonate

Electrical

16A, 300V, 22-12 AWG

Web Page

Click Here

Not available at this time.
