filter--iconPrice List

90.913

Altech | Series KO4300 | Din Rail
yellow-timer-icon Factory Lead Time: TBD
onlycheckmark RoHs Compliant

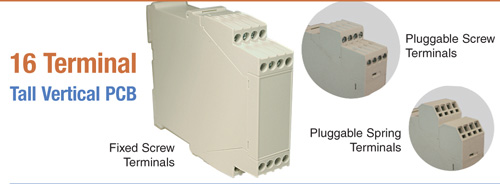

16 Terminal, Tall Vertical PCB, Pluggable Screw,35 mm DIN Rail

$55.40

Min: 1  Mult: 1

Product Attributes

Factory Stock

0 reported as of 10/09/18

Color

Light Grey

Terminal Block Material

Glass-filled Polyamide

Temperature Range

Up to 115°C (239°F), Housing 290°C (554°F), Terminals

Spec Sheet

Click Here

Recommended Torque

0.8Nm

PHOTO-1

Click Here


Click Here

PCB Connection

Machine Solder

Max. PCB's:

(2) Vertical

Housing Material

Glass-filled Polycarbonate

Electrical

16A, 300V, 22-12 AWG

Web Page

Click Here

Not available at this time.
