90.840.4

Altech | Series KO4700 | Din Rail
yellow-timer-icon Factory Lead Time: TBD
onlycheckmark RoHs Compliant

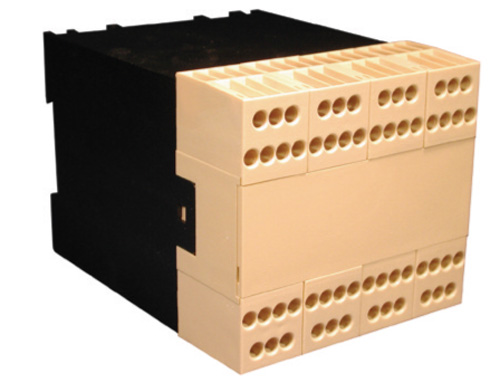

56 Terminal Maximum, Pluggable Card Edge Connection, Cover Panel with terminal release slots, Tan, 35mm DIN Rail or optional panel mounting*

$2.31

Min: 1  Mult: 1

Product Attributes

Color

Black Housing, Tan Cover

Temperature Range

Up to 125°C (257°F)

Spec Sheet

Click Here

Recommended Torque

0.8Nm

PHOTO-1

Click Here


Click Here

Max. PCB's:

(4) Vertical, (2) Horizontal, (1 ea.) Parallel with/ behind cover

Housing Material

Glass-filled Polycarbonate

Electrical

300V, 22-12 AWG

Cover Material

Glass-filled Polycarbonate

Web Page

Click Here

Not available at this time.
