90.352

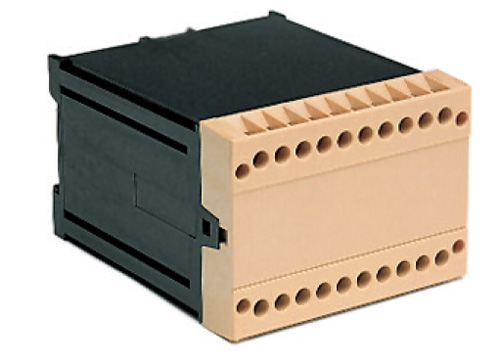

Altech | Series KO4700 | Din Rail
yellow-timer-icon Factory Lead Time: TBD
onlycheckmark RoHs Compliant
20 Terminal, Pluggable Connection, 35 mm DIN Rail or optional panel mounting*

$80.10

Min: 1  Mult: 1

Product Attributes

Color

Black Housing, Tan Cover

Temperature Range

Up to 125°C (257°F)

Spec Sheet

Click Here

Recommended Torque

0.8Nm

PHOTO-1

Click Here


Click Here

PCB Connection

Card Edge/ Wire Jumper

Max. PCB's:

(5) Vertical, (1) Horizontal behind cover

Housing Material

Glass-filled Polycarbonate

Electrical

10A, 300V, 22-14AWG

Cover Material

Glass-filled Polycarbonate

Web Page

Click Here

Not available at this time.
