Price List
90.291
Factory Lead Time: TBD
RoHs Compliant

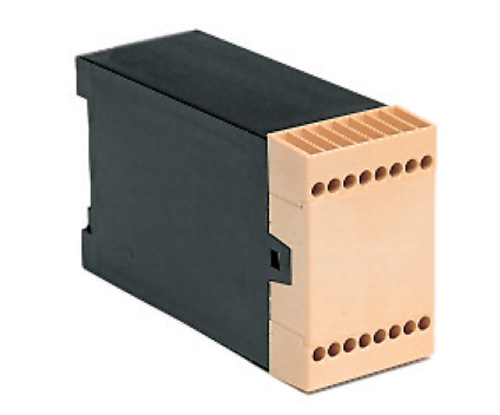

16 Terminal, Solder Connection, 35 mm DIN Rail
Hawk Electronics
Factory Lead Time: TBD
RoHs Compliant
Product Attributes
Color
Black Housing, Tan Cover
Temperature Range
Up to 125°C (257°F)
Spec Sheet
Recommended Torque
0.8Nm
PHOTO-1
.jpg){kind=link}
PCB Connection
Machine Solderable Pins
Max. PCB's:
(2) Vertical, (1) Horizontal
Housing Material
Glass-filled Polycarbonate
Electrical
16A, 300V, 22-12 AWG
Cover Material
Glass-filled Polycarbonate
Web Page
Series Attributes
Not available at this time.
