90.201.1

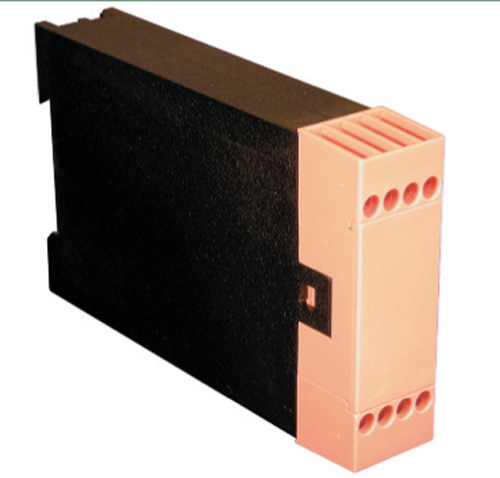

Altech | Series KO4700 | Din Rail
yellow-timer-icon Factory Lead Time: TBD
onlycheckmark RoHs Compliant
8 Terminal, Solder Connection, 35 mm DIN Rail or optional panel mounting

$33.90

Min: 1  Mult: 1

Product Attributes

Factory Stock

0 reported as of 06/03/19

Color

Black Housing, Tan Cover

Temperature Range

Up to 125°C (257°F)

Spec Sheet

Click Here

Recommended Torque

0.8Nm

PHOTO-1

Click Here


Click Here

PCB Connection

Machine Solderable Pins

Max. PCB's:

(2) Vertical, (1) Behind cover

Housing Material

Glass-filled Polycarbonate

Electrical

16A, 300V, 22-12 AWG

Cover Material

Glass-filled Polycarbonate

Web Page

Click Here

Not available at this time.
