Price List
90.152
Factory Lead Time: TBD
RoHs Compliant

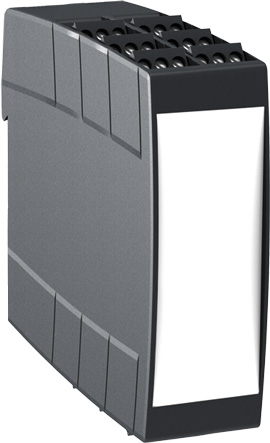

36 Terminal, Pluggable Spring Terminal, 35 mm DIN Rail
Hawk Electronics
Factory Lead Time: TBD
RoHs Compliant
Product Attributes
Factory Stock
3 reported as of 02/06/24
Color
Black Housing, Gray Cover Plate
Terminal Block Material
Polyamide
Temperature Range
Up to 120°C (248°F)
Spec Sheet
Recommended Torque
0.5Nm
PHOTO-1
.jpg){kind=link}
PCB Connection
Machine Solder
Max. PCB's:
(2) Vertical
Housing Material
Glass-filled Polycarbonate
Electrical
24-14AWG
Web Page
Series Attributes
Not available at this time.
