filter--iconPrice List

90.151

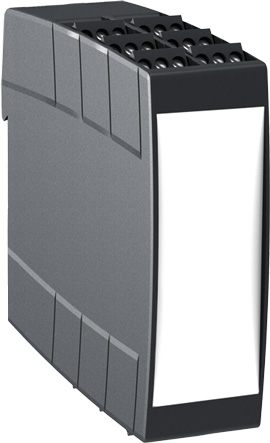

Altech | KS4400 | Din Rail
yellow-timer-icon Factory Lead Time: TBD
onlycheckmark RoHs Compliant
36 Terminal, Pluggable Screw Terminal, 35 mm DIN Rail

$99.00

Min: 1  Mult: 1

Product Attributes

Factory Stock

4 reported as of 02/06/24

Color

Black Housing, Gray Cover Plate

Terminal Block Material

Polyamide

Temperature Range

Up to 120°C (248°F)

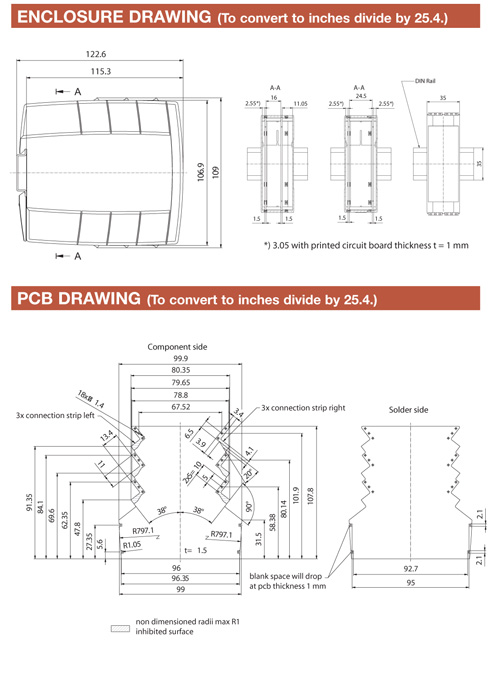

Spec Sheet

Click Here

Recommended Torque

0.5Nm

PHOTO-1

Click Here


Click Here

PCB Connection

Machine Solder

Max. PCB's:

(2) Vertical

Housing Material

Glass-filled Polycarbonate

Electrical

10A, 300V, 24-12AWG

Web Page

Click Here

Not available at this time.
