90.050.5

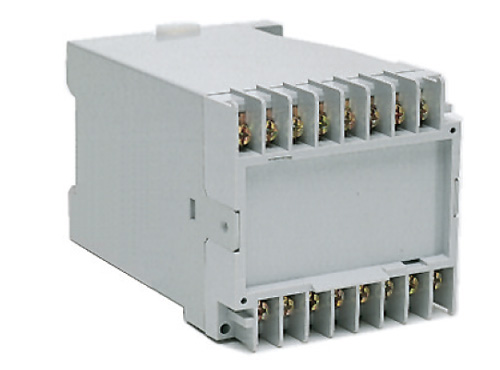

Altech | K70 | Din Rail
yellow-timer-icon Factory Lead Time: TBD
onlycheckmark RoHs Compliant
16 Terminal, Pluggable Connection (DIN Rail Mount Only), Single Level Terminals, 35 mm DIN Rail

$53.90

Min: 1  Mult: 1

Product Attributes

Factory Stock

0 reported as of 06/15/21

Color

Light Grey

Temperature Range

Up to 125°C (257°F)

Spec Sheet

Click Here

Recommended Torque

0.8Nm

PHOTO-1

Click Here


Click Here

PCB Connection

Wire Jumper/ Solder Tab/ Card Edge

Max. PCB's:

(7) Vertical, (6) Horizontal, (1) Behind Cover

Housing Material

Glass-filled Polycarbonate

Electrical

10A, 300V, 22-14AWG

Cover Material

Glass-filled Polycarbonate
