90.001

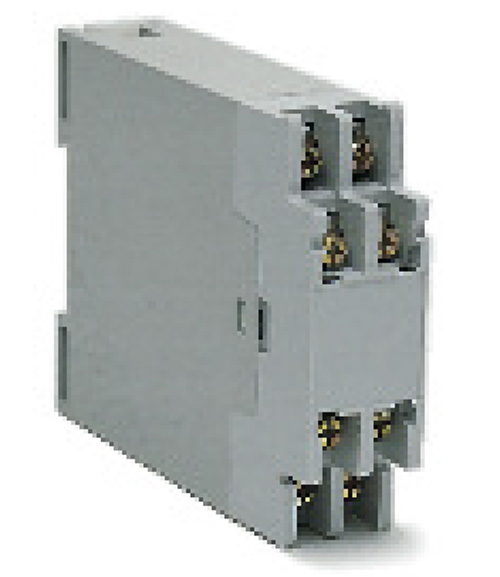

Altech | K70 | Din Rail
yellow-timer-icon Factory Lead Time: TBD
onlycheckmark RoHs Compliant
8 Terminal, Solder/Tab Connection, Double Level Terminals, 35 mm DIN Rail or panel mount

$23.50

Min: 1  Mult: 1

Product Attributes

Factory Stock

2 reported as of 02/06/24

Color

Light Grey

Temperature Range

Up to 125°C (257°F)

Spec Sheet

Click Here

Recommended Torque

0.8Nm

PHOTO-1

Click Here


Click Here

PCB Connection

Wire Jumper/ Fast On

Max. PCB's:

(2) Vertical

Housing Material

Glass-filled Polycarbonate

Electrical

25A, 300V, 24-14 AWG

Cover Material

Glass-filled Polycarbonate

Web Page

Click Here

Not available at this time.
