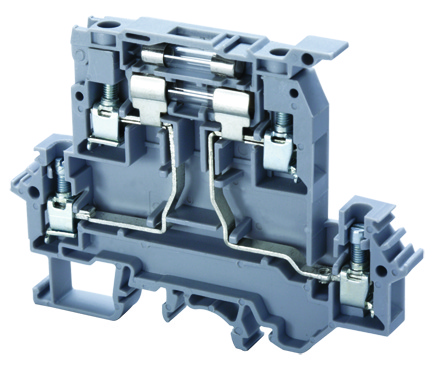

DDFL4ULR
Total Stock: 27
Factory Lead Time: TBD
RoHs Compliant
Breakers-ULDLFuse Blocks, 5 x 20 and 5 x 25 mm, 8 mm
Hawk Electronics
Total Stock: 27
Factory Lead Time: TBD
RoHs Compliant
Product Attributes
Hawk Stock
27 reported as of 02/06/24
Factory Stock
125 reported as of 02/06/24
Approvals
CSA, IEC, UL
Voltage Rating
600 V, 800 V, 600 V
Type of Connection
4 screw clamps & 1 tapped hole for cross connection
Torque
7 lb-in, 0.5 Nm, 7 lb-in
Terminal Width
8 mm
Stripping Length
9.5 mm
Spec Sheet
PACKAGE INFO
STD Pack 20
Insulation Material
Polyamide 6.6
Height x Length
66 x 88 mm
Current Rating
Top Level: 6.3 A, 6.3 A, 6.3 A
Wire Range
22-10 AWG, 0.2-4 sq.mm, 22-10 AWG
Series Attributes
Ambient Temperature
-25 to +55C (-13 to +131F)
Vibration Resistance
> 15g according to DIN EN 60069-2-59 during a load with I1 = 1.05 x IN
Termination Style
Screw
Terminal Torque (min/max)
2 Nm (17.7 lb.in.) / 2.5Nm (22.2 lb.in)
Terminal Size Acceptability
Top: 18-3 AWG; Bottom: 18-2 AWG
Storage Temperature
-40 to +70C (-13 to +158F)
Mounting Orientation
In any plane
Mechanical Life
10,000 cycles on/off
Electrical Life
6,000 cycles on/off
Calibration Temperature
40C (104F)
Wire Connection
copper wire only 60/75B0C
