2D4UL
Factory Lead Time: TBD
RoHs Compliant

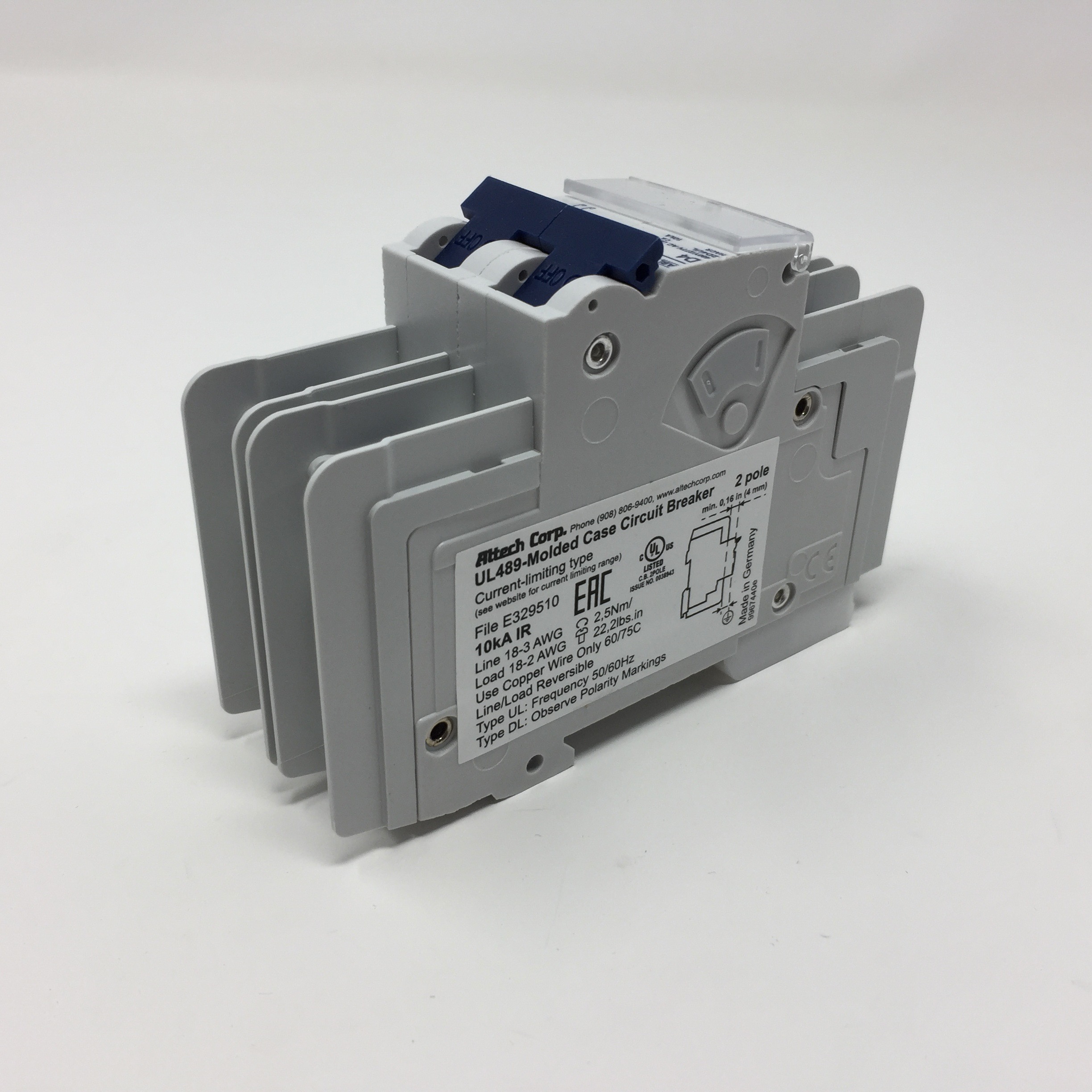

Breakers-ULDLAltech UL489 Din Rail Miniature AC 2 Pole Circuit Breaker. Rated at 4.0 Amps with a D Trip Curve
Hawk Electronics
Factory Lead Time: TBD
RoHs Compliant
Product Attributes
Factory Stock
275 reported as of 02/06/24
Alternate
2D4UL
Alternate Note
Please note Altech Brand Crosses to ABL/Doepke PN: 2D4UL
Poles
2 Pole
Weight
0.623 Lbs
Std Pack
6
Trip Curve
D
Rated Current
4.0 Amps
Current Type
AC
Attributes for sub
2DU4L (ALTCH)
Series Attributes
Ambient Temperature
-25 to +55C (-13 to +131F)
Wire Connection
copper wire only 60/75B0C
Vibration Resistance
3g (18-50Hz)
Termination Style
Screw
Terminal Torque (min/max)
2 Nm (17.7 lb.in.) / 2.5Nm (22.2 lb.in)
Terminal Size Acceptability
14-3 AWG: 17.5 lb-in. (2.0 Nm) -- or -- 18-16 AWG: 25 lb-in. (2.8 Nm)
Storage Temperature
-25 to +75C (-13 to +167F)
Mounting Orientation
In any plane
Mechanical Life
10,000 cycles on/off
Electrical Life
6,000 cycles on/off
Calibration Temperature
40C (104F)
Operating Temperature
-25 to +60C (-13 to +140F)
