B60x60S/BU-R

Altech | R-Series | UL1077 Breaker
yellow-timer-icon Factory Lead Time: TBD
onlycheckmark RoHs Compliant
Breakers-R

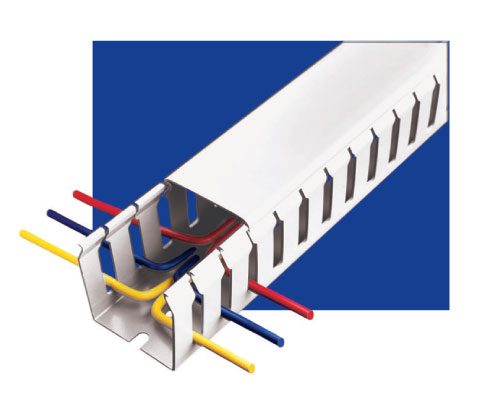

Altech 2" x 2" self extinguishing PVC Blue Wire duct Standard Slot Supplied with lid Sold in 8 lengths of 6 1/2' each

$25.50

Min: 1  Mult: 1

Product Attributes

Factory Stock

0 reported as of 04/06/18

Altech Web Page

Click Here

Service Teperature

+5° F to +140° F (-15° C to +60° C)


Click Here

Packaging Info

8 lengths of 6 1/2' each

nominal size w x h (inches)

2" x 2"

Material

self extinguishing PVC

Flammability

UL94 V-O rated m aterial

External Width inches (mm)

2.13 (54)

External Height inches (mm)

2.13 (54)

Color

Blue

Catalog Page

Click Here

Standards

base slots to DIN 43659

Calibration Temperature

30C (86F)

Voltage Rating

480Y/277VAC

Vibration Resistance

3g (18-50Hz)

Termination Style

Screw

Terminal Torque (min/max)

2 Nm (17.7 lb.in.) / 2.5Nm (22.2 lb.in)

Terminal Size Acceptability

14-3 AWG: 17.5 lb-in. (2.0 Nm) —- 18-16 AWG: 25 lb-in. (2.8 Nm)

Storage Temperature

-25°C to 75°C (-40°F to 167°F)

Operating Temperature

-25°C to 60°C (-13°F to 140°F)

Mounting Orientation

In any plane

Manufacturers self certification

10,000 ON/OFF operations with no load

Electrical Life

6,000 cycles on/off (See Chart)

Degree of protection acc. IEC/EN 60529

IP20

Wire Connection

copper wire only 60/75B0C
