DC1CU15L

Altech | L Series | Circuit Breaker
green-check-icon Total Stock: 147
blue-timer-icon Drop Ship Quantity: 3
yellow-timer-icon Factory Lead Time: TBD
onlycheckmark RoHs Compliant
Breakers-L

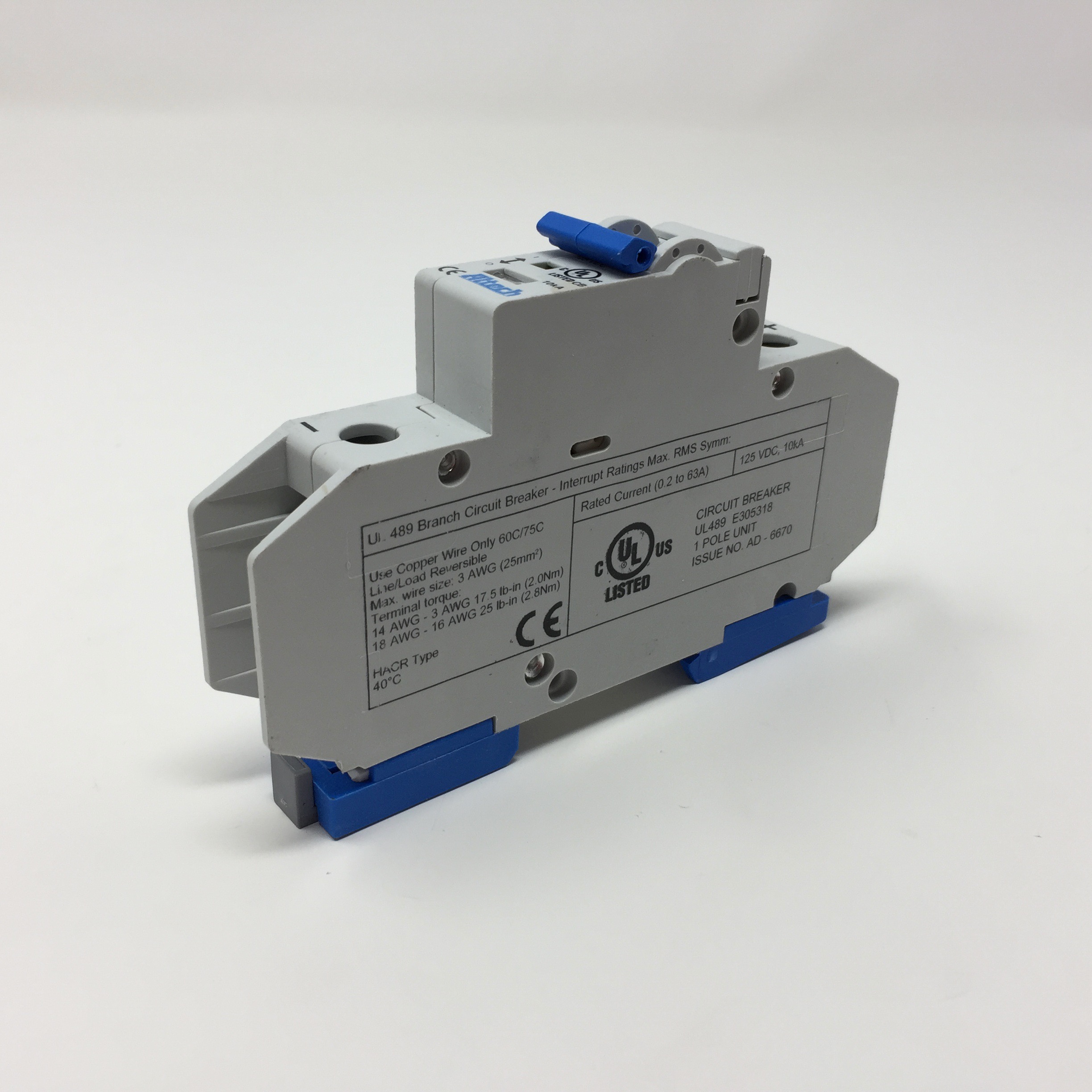

Altech UL489 Din Rail Miniature DC 1 Pole Circuit Breaker. Rated at 15 Amps with a C Trip Curve

$24.00

Min: 1  Mult: 1

Product Attributes

Factory Stock

275 reported as of 02/06/24

Alternate

DC1CR15L

Alternate Note

Please note ABL/Doepke Crosses to Altech Brand PN: DC1CR15L

Current Type

DC

Poles

1 Pole

Weight

0.311 Lbs

Std Pack

12

Trip Curve

C

Rated Current

15 Amps

Attributes for sub

1C15DL (ALTCH)

Wire Connection

copper wire only 60/75B0C

Electrical Life

6,000 cycles on/off

Mechanical Life

10,000 cycles on/off

Mounting Orientation

In any plane

Operating Temperature

-25 to +60C (-13 to +140F)

Storage Temperature

-40 to +70C (-13 to +158F)

Terminal Size Acceptability

Top: 18-3 AWG; Bottom: 18-2 AWG

Termination Style

Screw

Vibration Resistance

> 15g according to DIN EN 60069-2-59 during a load with I1 = 1.05 x IN

Calibration Temperature

40C (104F)

Terminal Torque (min/max)

2 Nm (17.7 lb.in.) / 2.5Nm (22.2 lb.in)

Ambient Temperature

-25 to +55C (-13 to +131F)
