Price List
H10UM
Factory Lead Time: TBD
RoHs Compliant

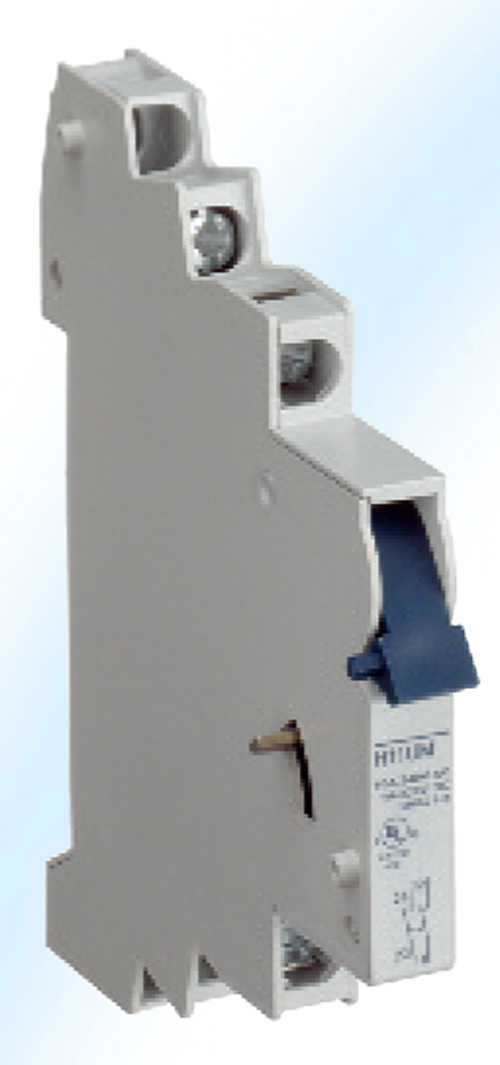

Altech Auxillary Contact, Alarm Switch. 1 Auxillary Contact with max. 0.8Nm (7lb. In) Torque
Hawk Electronics
Factory Lead Time: TBD
RoHs Compliant
Product Attributes
Factory Stock
40 reported as of 02/06/24
Contacts Type
1NO
Wire Range: Stranded Wire
1.0mm² - 1.5mm² (18-16 AWG)
Wire Range: Single Wire
1.0mm² - 2.5mm² (18-14 AWG)
Torque
max. 0.8Nm (7lb. In)
Rated Operating Currents
10A @240V AC, 3A @110V DC, 1A @220V DC
Product Specs
Photo-2
.jpg){kind=link}
Packing Info
Std. Pack 6
Minimum Contact Load
1mA @ 24V DC
MFG WEB Page
Wire Range: Stranded Wire with Ferrule
1.0mm² - 1.5mm² (18-16 AWG)
Series Attributes
Not available at this time.
