1636-BK005
Total Stock: 1
Factory Lead Time: 5
RoHs Compliant

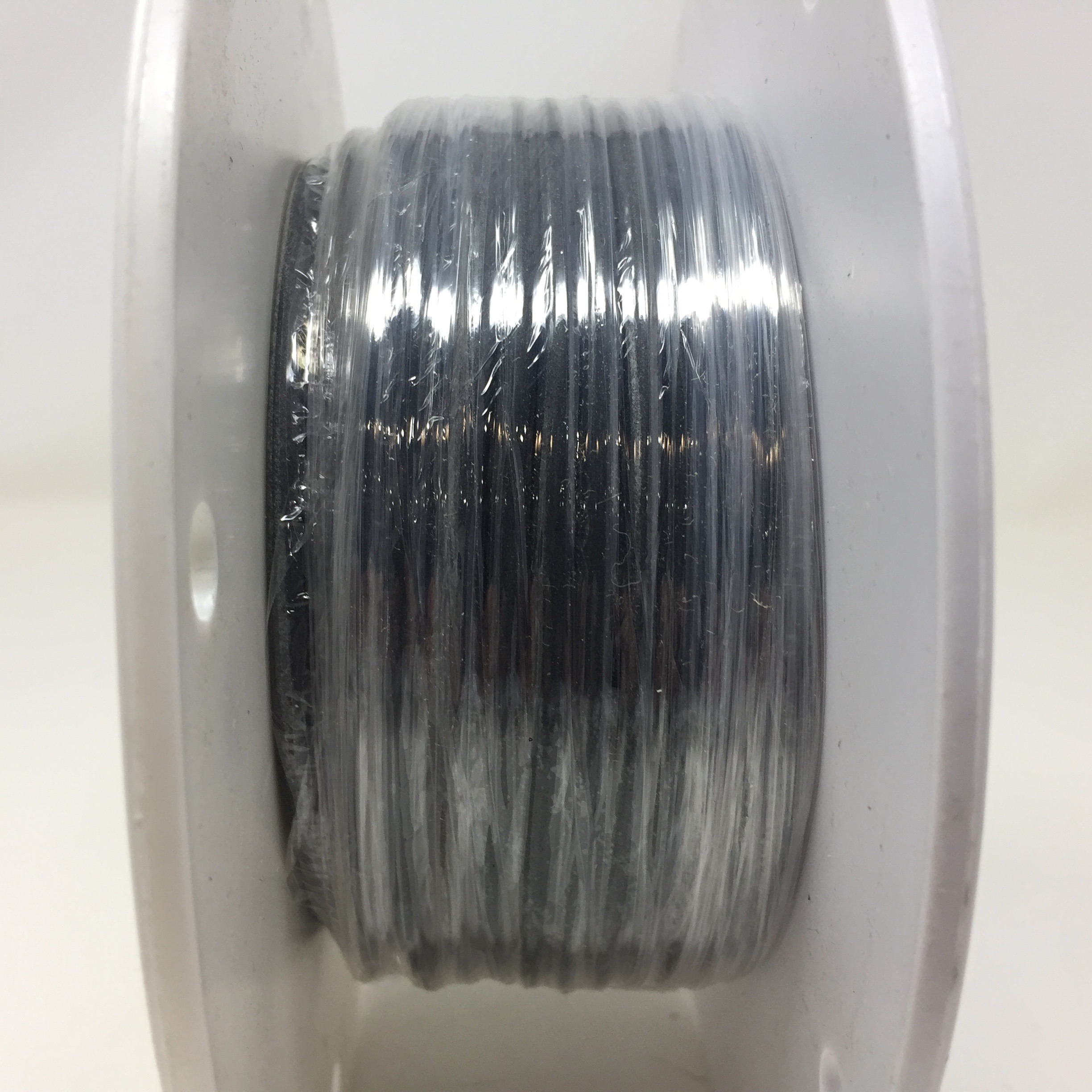

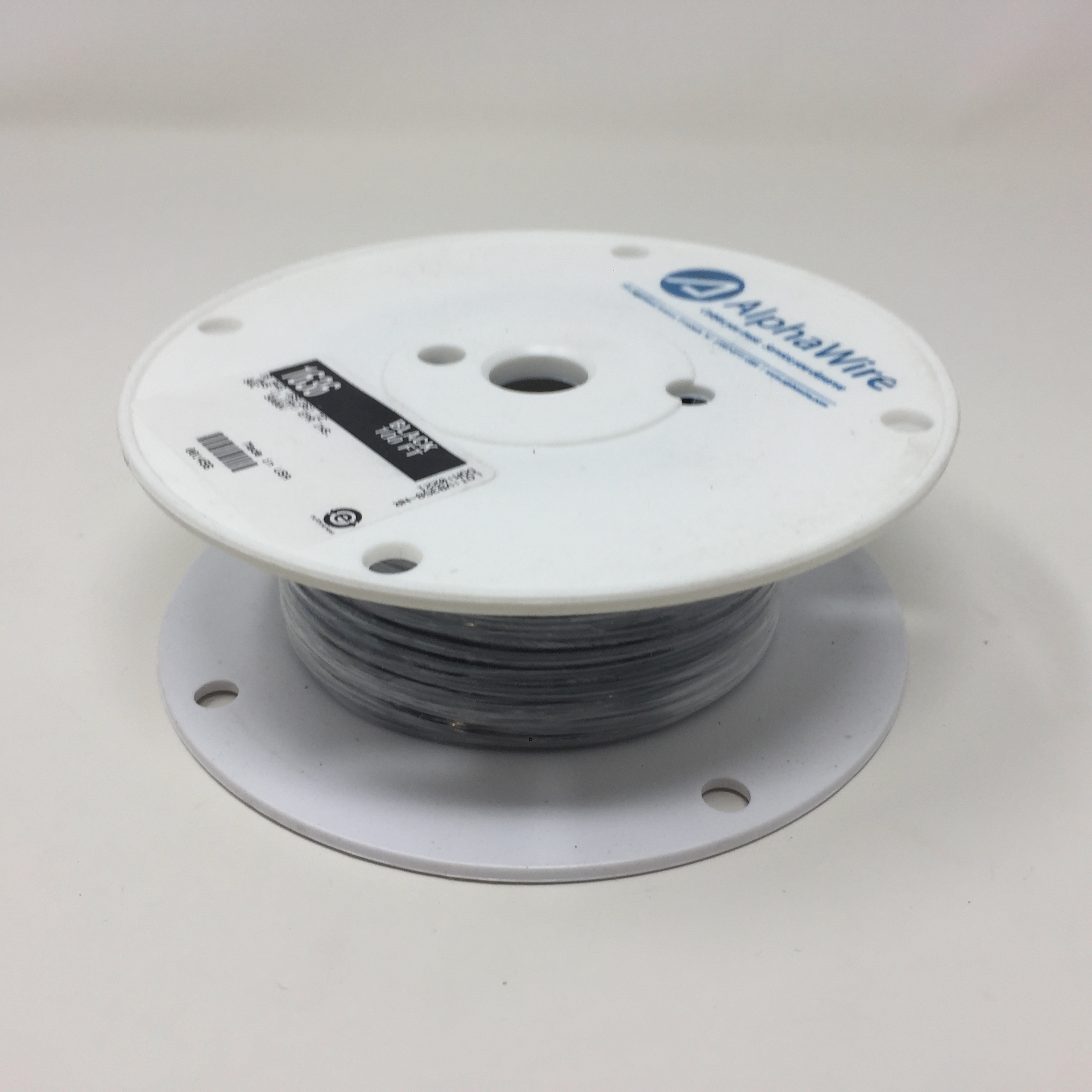

18 AWG Black Test Lead Hook Up Wire on 100 Foot Spool Put-Ups.
Hawk Electronics
Total Stock: 1
Factory Lead Time: 5
RoHs Compliant
Product Attributes
Alpha Base Item
1636
Voltage (V)
5000
Color Description
Black
Alpha Jacket Material
EPR
Wire AWG
18
Priced Per
100 FT
Stranding Description
0
# Conductors
1
Shielding Note
0
Alternate PN
1636 BK005
Conductor Element Desc
1
# of Elements
1
Wire OD
0.137
Wire Diameter
0_137
Alpha Product Line Description
LEAD WIRE/BUS BAR
Product-Line
LEAD WIRE/BUS BAR
ALPHA-Designation
Wire
AWG
18
Stranding AWG
65/36
Stranding (mm)
65 x 0.13
Wire Size
0.83
Working Voltage (RMS)
5,000
Breakdown Voltage (RMS)
20,000
Insulation Thickness (inches)
0.045
Insulation Thickness (mm)
1.14
Nominal Diameter (inches)
0.137
Nominal Diameter (mm)
3.48
Color
Black
Put-Up
100 Foot Spool
Package Type
Reel
Pricing Note
Price Per 100 Foot Reel
Series Attributes
ASTM
B33
Insulation Material
EPR Rubber
Operating Temp
-30C to + 90C
RoHS
Compliant
Wire Material
Stranded Tinned Copper
