F2213/4-CL007

Alpha Wire | Heat Shrink
green-check-icon Total Stock: 1
yellow-timer-icon Factory Lead Time: 14
onlycheckmark RoHs Compliant

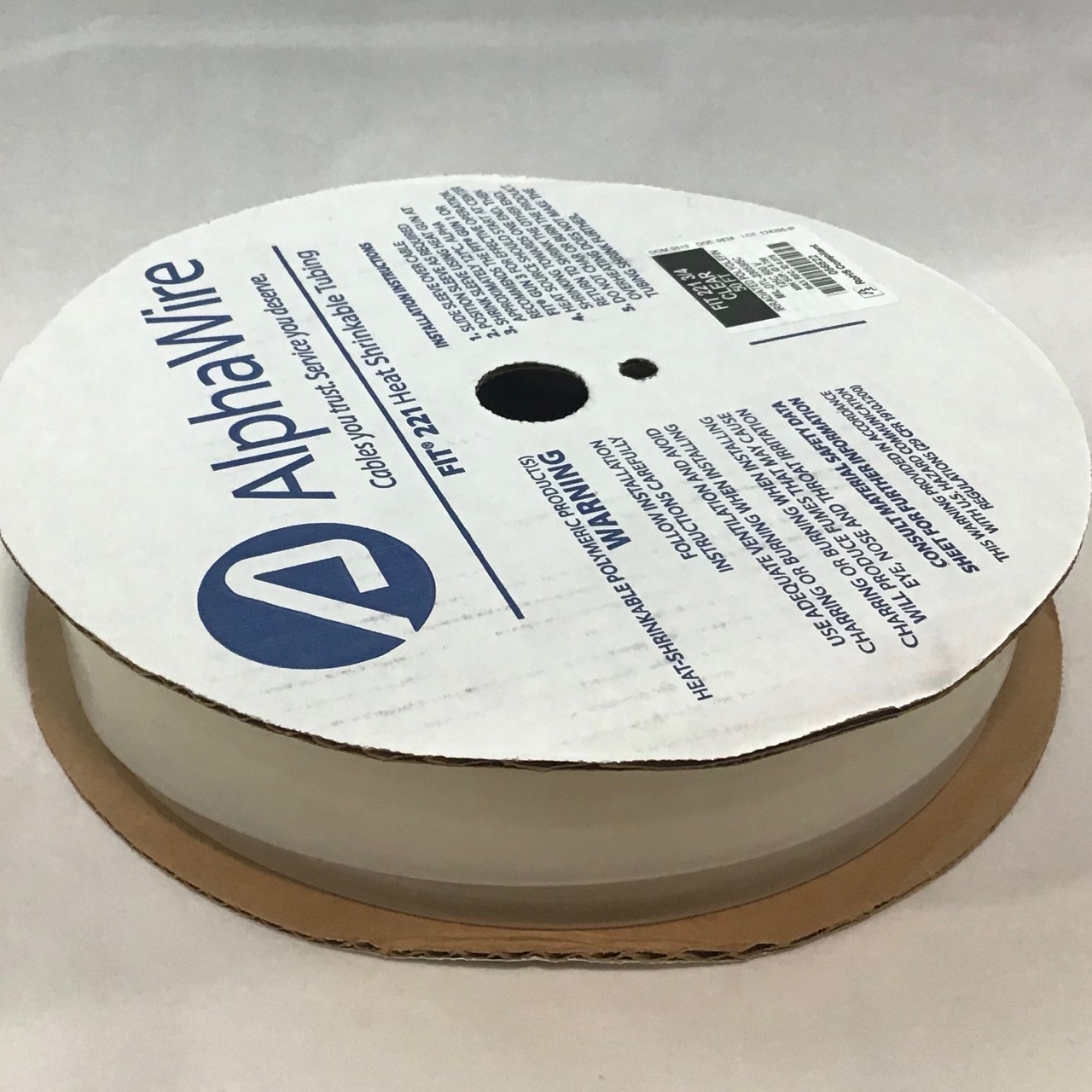

Heat Shrink, 3/4 in General Purpose Cross Linked Clear Polyolefin Tubing 2 to 1 Shink ratio, 50 foot reel Put-up.

$114.0925

Min: 1  Mult: 1

Product Attributes

Alpha Base Item

F2213/4

Alpha Jacket Material

XLPO

Color Description

Clear

Alternate PN

F2213/4 CL007

Priced Per

50 FT

Alpha Product Line Description

FIT SHRINK TUBING

Product-Line

FIT SHRINK TUBING

Diameter

3/4 in

Supplied I.D. mm

19.05

Supplied I.D. Inch

0.75

Recovered Wall Thickness Nom mm

0.76

Recovered Wall Thickness Nom Inch

0.03

Recovered ID Max mm

9.53

Recovered ID Max Inch

0.375

Color

Clear

Specific Gravity

1.00

CSA International Rating

N/A

Operating Temp

-55C to +125C

UL Rating

N/A

UV Resistant

NO

Put-up

50 foot reel

Pricing Note

Priced Per Foot

Total Feet

50

Combustibility

Flame Retardant

Minimum Shrink Temp

+90C

Minimum Supplied ID

0.25

Nominal Recovered Wall Thickness

0.025

Shelf Life

5 years at +18C to +35C

Tensile Strength

1500 psi

Tubing Material

XLPO (cross linked polyolefin)

Vacuum Outgassing-CVCM

0.10% max

Volume Resistivity

10 to the 14th ohm-cm

Maximum Recovered ID

0.125

Longitudinal Change

+/- 5%

Corrosive Effect

None

Dielectric Strength

500 V/mil

Elongation

200% min

Fluid Resistance

1000 psi

Full Recovery Temp

+121C

Fungus Resistance

No Growth

Halogen Free

YES

Lead Free

YES

Water Absorption

0.5% max
