Intermatic

AG2401C3

Intermatic | AG | Surge Protective
yellow-timer-icon Factory Lead Time: TBD
onlycheckmark RoHs Compliant

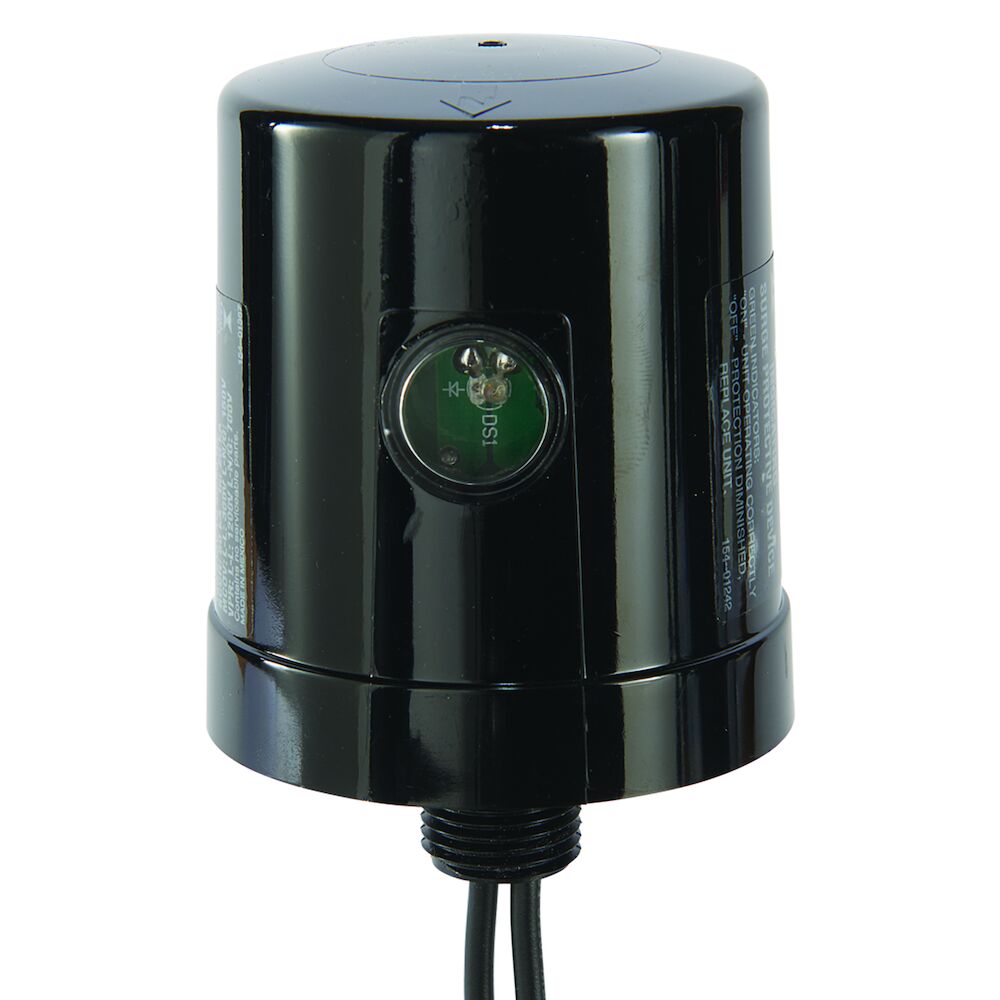

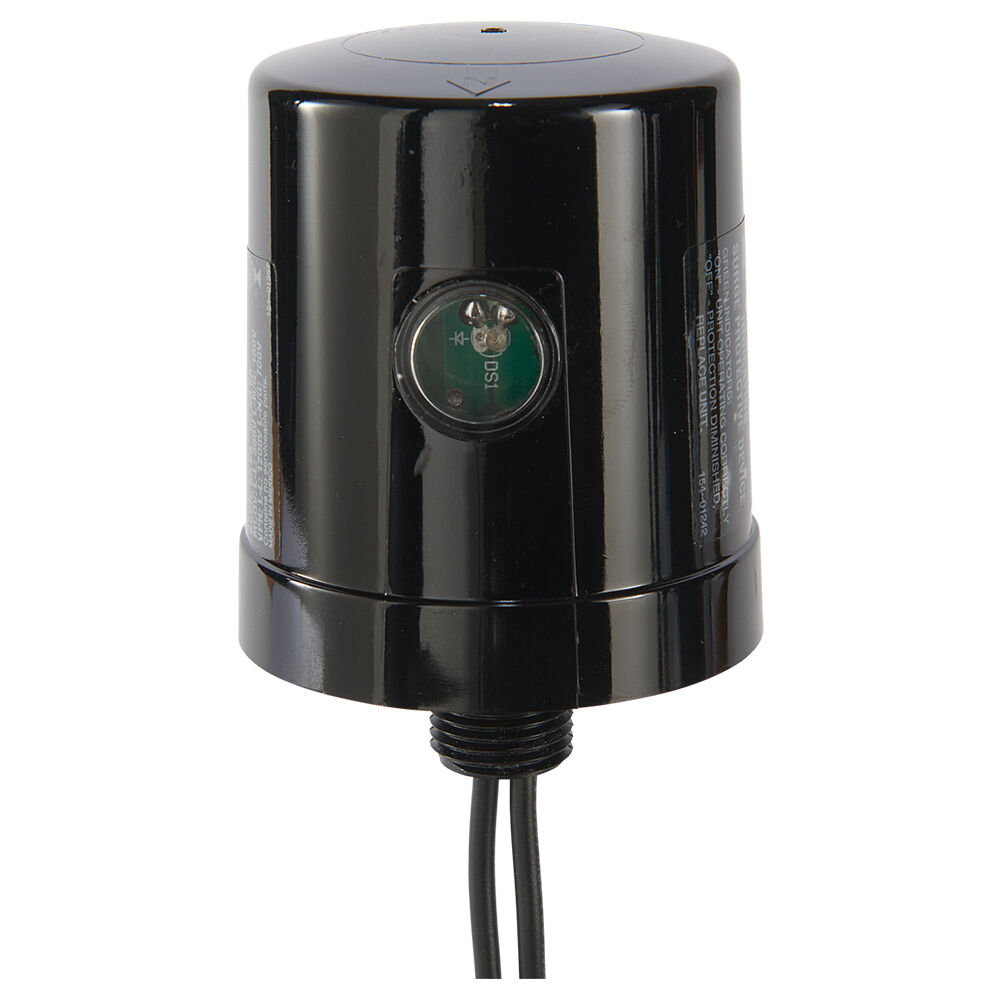

The AG Series Surge Protective Devices (SPD) are designed for a variety of applications. Trusted, state-of-the-art TPMOV® (Thermally Protected Metal Oxide Varistor) surge protection technology eliminates the potentially hazardous failure modes that are commonly associated with standard MOV technology. A green LED indicator provides status of protection. Type 1 applications include outdoor installations before service entrances and utility meter cabinets. Type 2 applications include installation

$90.87

Min: 1  Mult: 1

Product Attributes

Brand

Intermatic

Short Circuit Current Rating

50 kA

Product Diameter In

3

Photo-3

Click Here

Photo-2

Click Here

Photo-1

Click Here

Operating Temperature Min F

-31

Operating Temperature Max F

185

Number Of Wire Leads

3

Surge Protection Technology

TPMOV®

Surge Protection Types

1;2

Wire Size Max

#12 AWG

Wire Lead Length In

18

WarrantyPeriod

1-Year limited

Voltage Protection Rating LN

700

Voltage Protection Rating LL

1200

Voltage Protection Rating LG

700

UPC

078275124431

UL Certification

UL;cULus

Number Of Power Phases

Single

Nominal Discharge Current

20 kA

Feature6

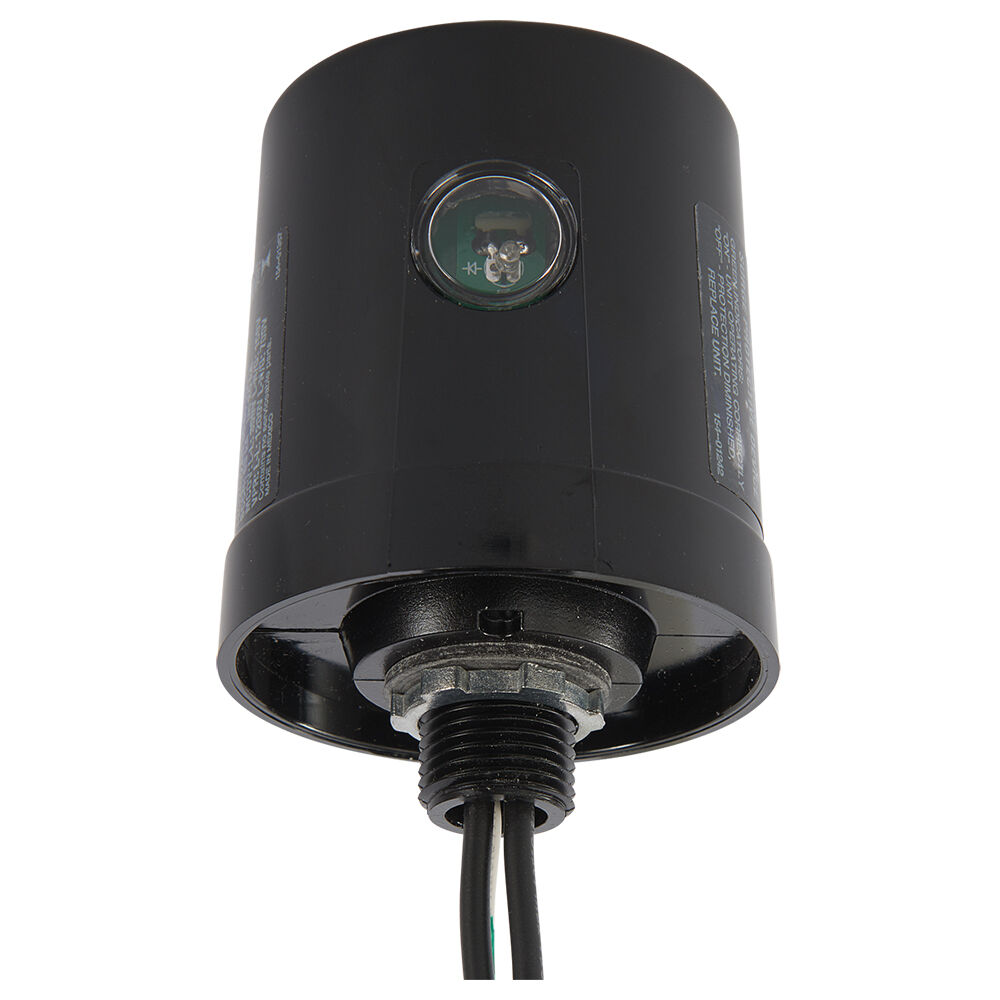

1⁄2" threaded nipple for 7⁄8" nominal conduit knockout

Feature5

UV-resistant polycarbonate housing

Feature4

Type 4X watertight, plastic enclosure for outdoor installations

Feature3

Green LED protection indicator

Feature2

TPMOV® surge protection technology

Feature1

Six modes of protection

Enclosure Type

Indoor/outdoor type 4X

CSA Certification

CSA;cCSAus;cCSAus SPD Type 1;cCSAus SPD Type 2

Feature7

1-year product warranty

Feature8

CSA certified to ANSI/UL 1449 5th edition

Modes Of Protection

3 (L1-N, L2-N, L1-L2)

MFG-Link

Click Here

MaximumContinuousOperatingVoltageLN

150

Maximum Continuous Operating Voltage LL

300

Maximum Continuous Operating Voltage LG

150

LED Surge Protection Indicator

Green

GTIN

00078275124431

Wiring Option

Wire leads

LifeCycle

Production
